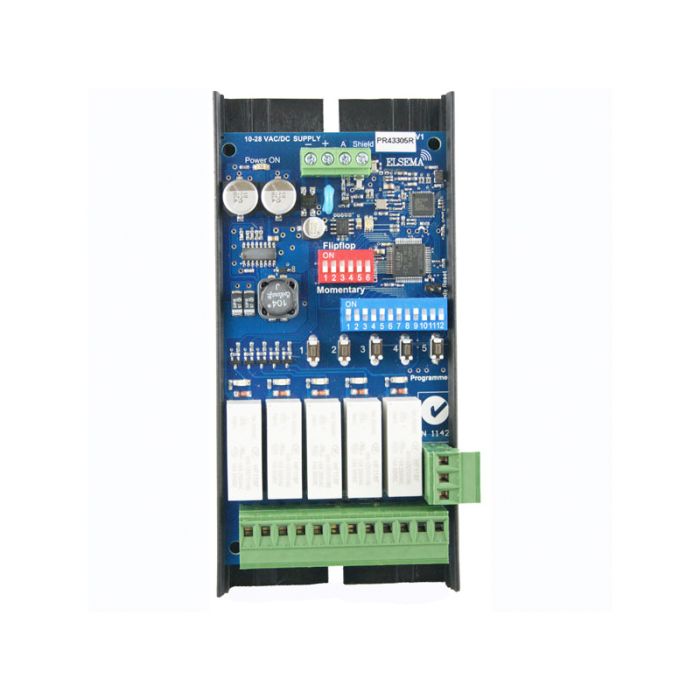

PCR43305R 5 Channel 433 MHz Penta Receiver - PCB Only
The PCR43305R is a 5-channel Elsema Penta receiver for 433 MHz wireless control with five changeover relay outputs. It operates from 12 to 24 V AC or DC, uses frequency hopping across the 433.100 to 434.700 MHz band, and supports PentaFOB and PentaCODE remotes.
As the board-only version, it is suited to integration into equipment housings for gates, doors, lighting, security and machinery control. Multiple relay channels allow several outputs to be managed from one receiver while selectable modes support momentary, latching and security latching operation.
Key Features
- Five relay outputs provide broad control capacity from a single receiver board.
- Board-level design supports custom mounting inside suitable control equipment.
- Dual coding gives installers a choice between dipswitch setup and encrypted code operation.
- Low-voltage AC/DC operation fits common automation and access-control supply arrangements.
- Diagnostic LEDs help confirm power, reception and relay activity during service checks.
- Catalogue Family:
- TRANSMITTERS & RECEIVERS
- Supply Voltage:
- 12 to 24 V AC or DC
- Standby Current:
- 15 mA at 24 V DC
- Current Consumption:
- 91 mA with all relays on
- Frequency Band:
- 433.100 to 434.700 MHz
- Receiver Sensitivity:
- 0.316 uV (-117 dBm)
- Operating Temperature:
- -5 to 50 deg C
- Receiver Memory:
- Unlimited remotes
- Decoding System:
- Encrypted 17 billion code combinations or on-board 12-way code switch
- Outputs:
- 5 changeover relay outputs rated at 10 A at 240 V AC each
- Dimensions:
- 130 x 70 x 27 mm
- Usable Transmitters:
- FOB433 series and PCK series
- Product Type:
- Transmitters & Receivers
