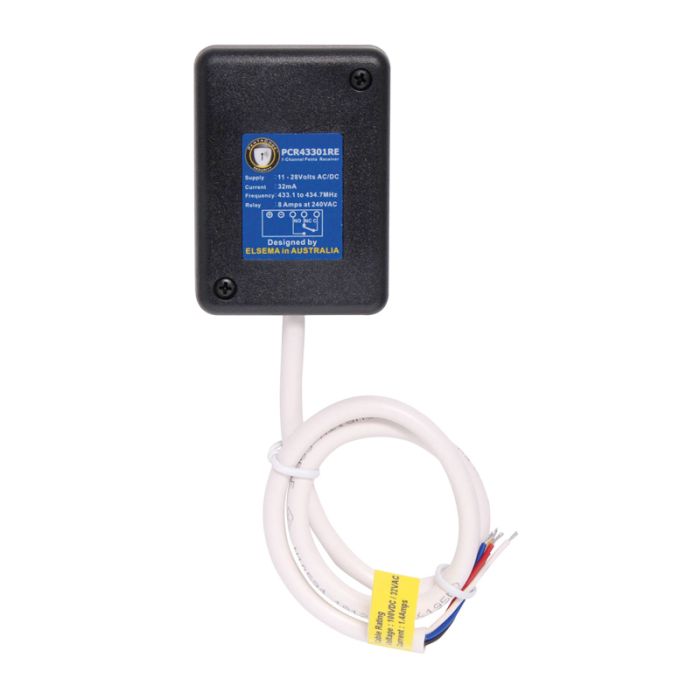

PCR43301RE 1 Channel 433 MHz Penta Receiver - Enclosed Case
The PCR43301RE is a compact 1-channel Elsema Penta receiver for 433 MHz wireless access and control applications. It operates from 12 to 24 V AC or DC, uses frequency hopping across the 433.100 to 434.700 MHz band, and provides a changeover relay output rated at 8 A at 240 V AC.
Designed for gate openers, garage door controls, lighting, security shutters and other contact-closure tasks, it supports PentaFOB and PentaCODE remotes with either 12-way dipswitch coding or encrypted code operation. Its small enclosed format and on-board diagnostic LEDs make it practical for retrofit and service work.
Key Features
- Low-voltage AC/DC supply gives installers flexibility across common access-control power arrangements.
- Compact enclosed construction helps the receiver fit into existing gate or door-control installations.
- Selectable output behaviour supports momentary, latching and timed control requirements from one receiver.
- Unlimited remote memory supports installations that may grow beyond a small number of users.
- On-board indicators make power, reception and relay checks easier during commissioning.
- Catalogue Family:
- POWER SUPPLY
- Supply Voltage:
- 12 to 24 V AC or DC
- Standby Current:
- 21 mA at 24 V DC
- Current Consumption:
- 42 mA with relay on
- Frequency Band:
- 433.100 to 434.700 MHz
- Receiver Sensitivity:
- Better than 0.316 uV (-117 dBm)
- Operating Temperature:
- -5 to 50 deg C
- Receiver Memory:
- Unlimited remotes
- Decoding System:
- Encrypted 17 billion code combinations or on-board 12-way code switch
- Outputs:
- 1 changeover relay output rated at 8 A at 240 V AC
- Connections:
- 50 cm flying leads for supply and relay output
- Dimensions:
- 70 x 55 x 25 mm
- Weight:
- 70 g
- Usable Transmitters:
- FOB433 series and PCK series
- Product Type:
- Power Supply
