PCR43304RE 4 Channel 433 MHz Penta Receiver - IP66 Case

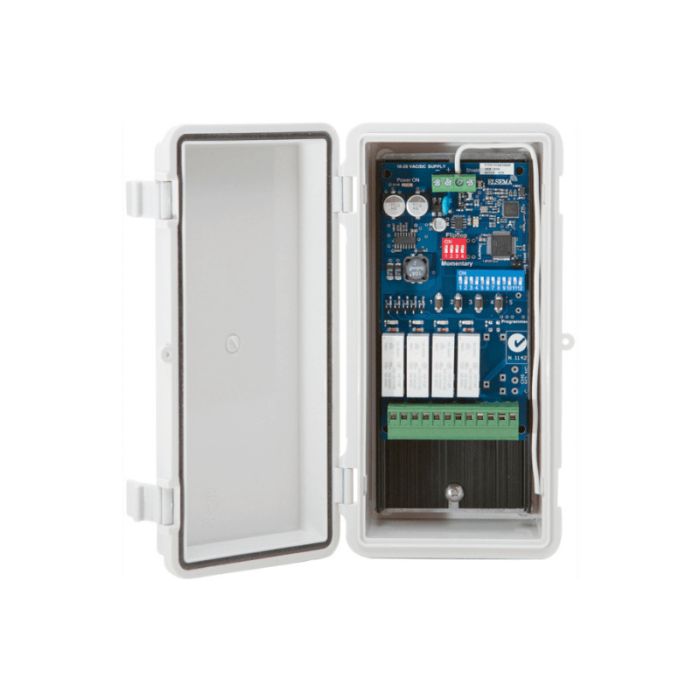

The PCR43304RE is the enclosed IP66-case version of Elsema's 4-channel 433 MHz Penta receiver with frequency hopping. It operates from 12 to 24 V AC or DC and provides four changeover relay outputs, each rated at 10 A at 240 V AC.
It is designed for wireless control of gates, doors, equipment, lighting, security and other contact-closure applications that need multiple relay outputs. User-selectable momentary, latching and security latching modes allow each channel to be matched to the intended control behaviour.
Key Features
- Four relay channels give installers more control points from a single Penta receiver.
- IP66 enclosed variant is suited to projects where the receiver needs a protected housing.
- Wide AC/DC supply support fits common low-voltage automation and access-control panels.
- Frequency hopping and antenna options support reliable 433 MHz remote-control operation.
- User-selectable output modes help adapt the receiver to access, lighting or security-style control.
- Catalogue Family:
- POWER SUPPLY
- Supply Voltage:
- 12 to 24 V AC or DC
- Standby Current:
- 15 mA at 24 V DC
- Current Consumption:
- 91 mA with all relays on
- Frequency Band:
- 433.100 to 434.700 MHz
- Receiver Sensitivity:
- 0.316 uV (-117 dBm)
- Operating Temperature:
- -5 to 50 deg C
- Receiver Memory:
- Unlimited remotes
- Decoding System:
- Encrypted 17 billion code combinations or on-board 12-way code switch
- Outputs:
- 4 changeover relay outputs rated at 10 A at 240 V AC each
- Dimensions:
- 200 x 100 x 75 mm
- Usable Transmitters:
- FOB433 series and PCK series
- Enclosure:
- IP66 rated case
- Product Type:
- Power Supply
