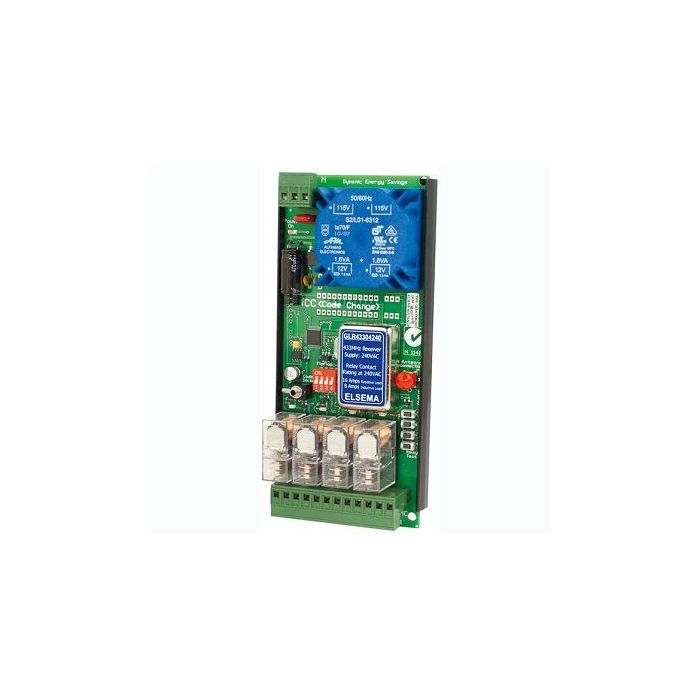

GLR43304240 4 Channel 433 MHz Gigalink Receiver - 240 V AC
The GLR43304240 is a 4-channel Elsema Gigalink receiver with 240 V AC mains supply and high-capacity relay outputs. It uses 433.920 MHz ASK reception, microcontroller-based coding and four changeover relay outputs rated at 16 A resistive load or 8 A inductive load.
For pump control, long-distance lighting, agricultural on/off applications, basic telemetry and security alarm tasks, this receiver provides multi-channel mains-powered control in one unit. Pluggable terminal blocks, relay test buttons and available mounting or enclosure options support practical installation work.
Key Features
- Four output channels suit sites that need several controlled functions from one receiver.
- 240 V AC supply supports mains-powered receiver installations.
- Pluggable terminal blocks and test buttons make connection and commissioning more installer-friendly.
- Gigalink microcontroller coding supports secure remote-control operation with matching GLT transmitters.
- Catalogue Family:
- TRANSMITTERS & RECEIVERS
- Supply Voltage:
- 240 V AC mains
- Current Consumption:
- 25 mA
- Receiving Frequency:
- 433.920 MHz
- Operating Temperature:
- -5 to 50 deg C
- Sensitivity:
- Better than 1.0 uV for output switching
- Demodulation:
- Amplitude shift keying ASK
- Decoding System:
- Microcontroller 32-bit word
- Code Combinations:
- 4,294,967,296
- Outputs:
- 4 changeover relay outputs rated at 16 A resistive load and up to 8 A inductive load
- Connections:
- Pluggable type terminal blocks for supply and outputs
- Dimensions:
- 160 x 70 x 30 mm
- Weight:
- 280 g
- Usable Transmitters:
- Elsema 433 MHz GLT series
- Product Type:
- Transmitters & Receivers
