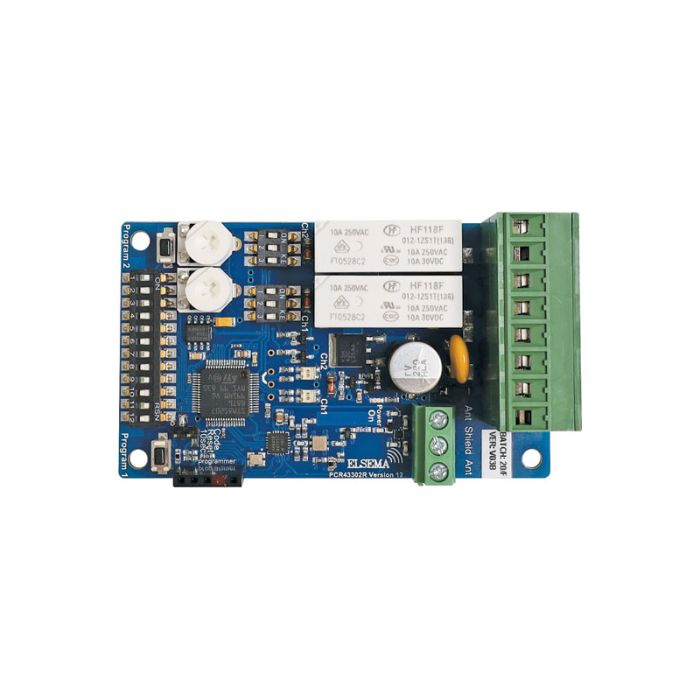

PCR43302R 2 Channel 433 MHz Penta Receiver - PCB Only
The PCR43302R is a PCB-only 2-channel Elsema Penta receiver with relay outputs for 433 MHz wireless control. It operates from 12 to 24 V AC or DC, uses frequency hopping with PentaFOB and PentaCODE remotes, and provides two changeover relay outputs rated at 10 A at 240 V AC.
This board-level receiver is suited to integration into custom cases, gate and garage controls, lighting, security shutters and similar contact-closure applications. Independent channel control, roller-shutter mode and selectable output behaviour give installers useful flexibility while keeping the receiver compact.
Key Features
- PCB-only format supports custom enclosure and equipment integration where space is planned by the installer.
- Two changeover relay outputs allow separate control functions from the same wireless receiver.
- Wide low-voltage supply range suits common AC or DC control-panel power sources.
- Encrypted and dipswitch coding options support both simple and higher-security remote setups.
- Antenna diversity and frequency hopping help support dependable control in varied installations.
- Catalogue Family:
- TRANSMITTERS & RECEIVERS
- Supply Voltage:
- 12 to 24 V AC or DC
- Standby Current:
- 21 mA at 24 V DC
- Frequency Band:
- 433.100 to 434.700 MHz
- Receiver Sensitivity:
- 0.316 uV (-117 dBm)
- Operating Temperature:
- -5 to 50 deg C
- Receiver Memory:
- Unlimited remotes
- Decoding System:
- Encrypted 17 billion code combinations or on-board 12-way code switch
- Outputs:
- Two changeover relay outputs rated at 10 A at 240 V AC
- Connections:
- Supply and output via 8-way female connector
- Dimensions:
- 87 x 52 x 20 mm
- Weight:
- 60 g
- Usable Transmitters:
- FOB433 series and PCK series
- Product Type:
- Transmitters & Receivers
