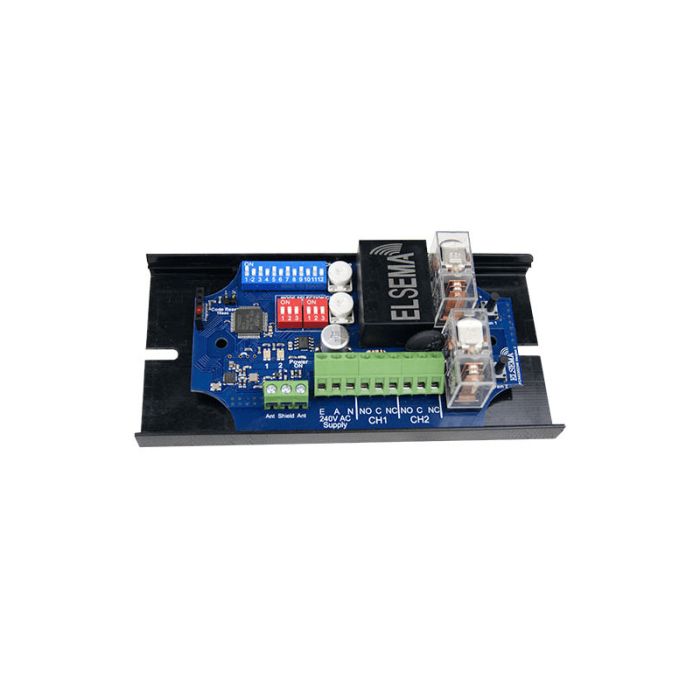

PCR43302240R 2 Channel 433 MHz Penta Receiver - 100 to 240 V AC
The PCR43302240R is a 2-channel Elsema Penta receiver for 433 MHz wireless switching from a 100 to 240 V AC mains supply. It provides two voltage-free changeover relay outputs, frequency hopping from 433.100 to 434.700 MHz, and PentaCODE dual coding using either a 12-way code switch or encrypted codes.
Built for gates, roller shutters, doors, lighting, security and machinery control, this receiver lets each channel be controlled independently in standard modes while also supporting roller-shutter style control. It gives installers a mains-powered receiver option with diagnostic indication for power, reception and relay activation.
Key Features
- Two-channel output supports independent control of separate switching functions from one receiver.
- Direct mains supply reduces the need for a separate low-voltage power source in suitable installations.
- Roller shutter mode gives supported open-stop-close style operation from a single remote button.
- Frequency hopping and antenna diversity support more robust wireless control in the field.
- Selectable coding paths suit both simple dipswitch matching and encrypted remote systems.
- Catalogue Family:
- TRANSMITTERS & RECEIVERS
- Supply Voltage:
- 100 to 240 V AC mains
- Frequency Band:
- 433.100 to 434.700 MHz
- Receiver Sensitivity:
- Better than 0.316 uV (-117 dBm)
- Operating Temperature:
- -5 to 50 deg C
- Receiver Memory:
- Unlimited remotes
- Decoding System:
- Encrypted 17 billion code combinations or on-board 12-way code switch
- Outputs:
- 2 voltage-free changeover relay outputs rated at 8 A at 240 V AC
- Relay Contacts:
- Common C Normally Closed NC and Normally Open NO
- Connections:
- Screw type terminal block
- Dimensions:
- 120 x 70 x 30 mm
- Weight:
- 140 g
- Usable Transmitters:
- FOB433 series and PCK series
