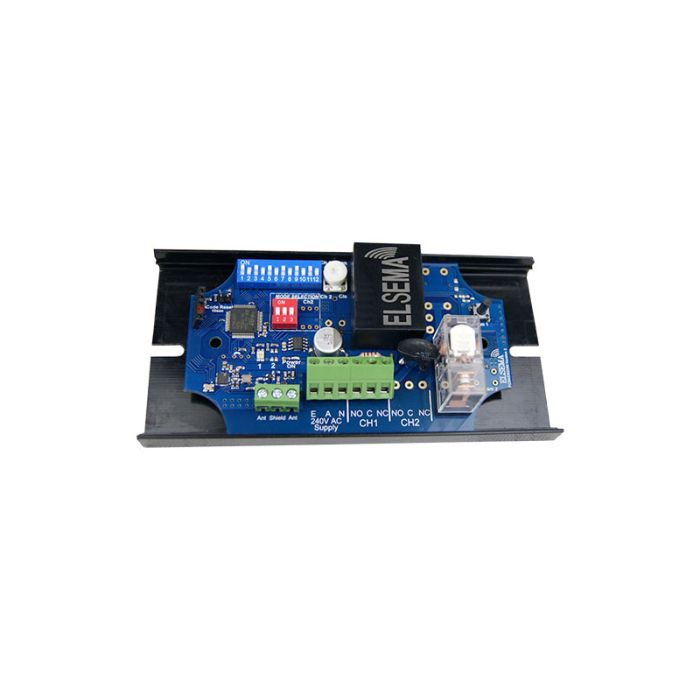

PCR43301240R 1 Channel 433 MHz Penta Receiver - 100 to 240 V AC
The PCR43301240R is a 1-channel Elsema Penta receiver designed for 433 MHz wireless control where mains AC supply is required. It supports frequency hopping from 433.100 to 434.700 MHz, 12-way dipswitch or encrypted PentaCODE coding, and a voltage-free changeover relay output for controlled switching.
Suited to automatic gates, roller shutters, doors, lighting and machinery control, this receiver gives installers a direct mains-powered control option without needing a separate low-voltage supply. Diagnostic LEDs, selectable relay modes and PentaFOB or PentaCODE transmitter support help simplify setup and ongoing service.
Key Features
- Mains-powered design suits projects where a 100 to 240 V AC supply is already available at the control point.
- Frequency hopping operation helps maintain dependable wireless control across the supported 433 MHz band.
- Selectable relay modes let the receiver adapt to hold-to-run, latching, timed and security-style control tasks.
- Penta coding options support straightforward dipswitch matching or higher-capacity encrypted remote management.
- Diagnostic indication assists installers when checking power, reception and relay activation on site.
- Catalogue Family:
- TRANSMITTERS & RECEIVERS
- Supply Voltage:
- 100 to 240 V AC mains
- Frequency Band:
- 433.100 to 434.700 MHz
- Receiver Sensitivity:
- Better than 0.316 uV (-117 dBm)
- Operating Temperature:
- -5 to 50 deg C
- Receiver Memory:
- Unlimited remotes
- Decoding System:
- Encrypted 17 billion code combinations or on-board 12-way code switch
- Outputs:
- Voltage-free changeover relay output rated at 8 A at 240 V AC
- Relay Contacts:
- Common C Normally Closed NC and Normally Open NO
- Connections:
- Screw type terminal block
- Dimensions:
- 120 x 70 x 30 mm
- Weight:
- 140 g
- Usable Transmitters:
- FOB433 series and PCK series
- Product Type:
- Transmitters & Receivers
