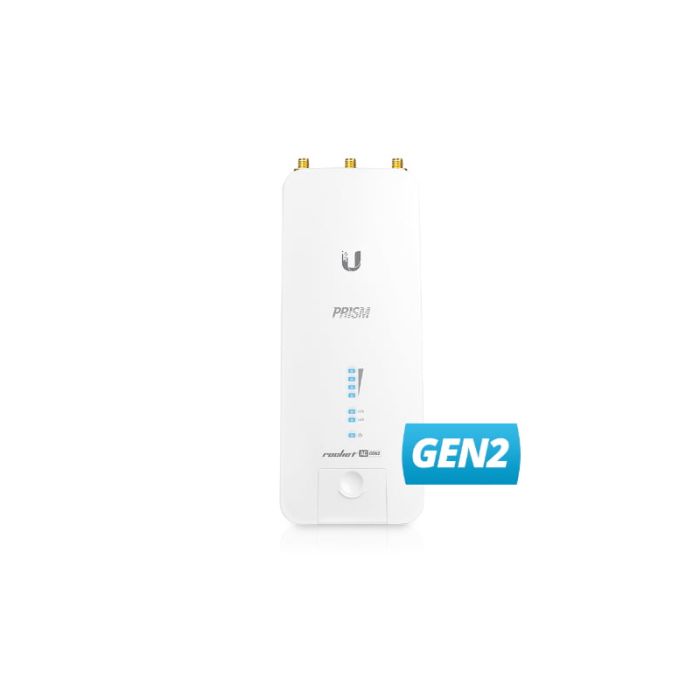

RP-5AC-Gen2 Ubiquiti Rocket Prism 5AC Gen 2 airMAX ac Radio
The RP-5AC-Gen2 is a Ubiquiti Rocket Prism 5AC Gen 2 5 GHz airMAX ac radio with airPrism active RF filtering technology. It is designed for RocketDish ac point-to-point backhaul and airMAX ac Sector point-to-multipoint links.
The radio combines a custom airMAX ac processor, dedicated management radio and airOS 8 features for high-density wireless deployments. airPrism filtering, RF analytics and wide channel support help installers manage interference and optimise outdoor network performance.
Key Features
- airPrism active RF filtering helps manage interference in high-density sites.
- airMAX ac protocol support suits high-capacity PtP and PtMP links.
- Dedicated management radio improves configuration access in the field.
- Gigabit Ethernet and passive PoE support simplify basestation integration.
- Die-cast aluminium enclosure supports rugged outdoor wireless deployment.
- Catalogue Family:
- POWER SUPPLY
- Model:
- RP-5AC-Gen2
- Dimensions:
- 88 x 40 x 230 mm
- Weight:
- 400 g
- Networking Interface:
- (1) 10/100/1000 Ethernet port
- RF Connectors:
- (2) waterproof RP-SMA, (1) waterproof GPS
- Enclosure:
- Die-cast aluminium with white powder coating
- Max. Power Consumption:
- 9.5 W
- Power Supply:
- 24 V, 1 A Gigabit PoE adapter included
- Power Method:
- Passive PoE, pairs 4,5+ and 7,8 return
- Processor:
- Atheros MIPS 74Kc
- Memory:
- 128 MB DDR2 SDRAM
- Channel Sizes:
- PtP: 10/20/30/40/50/60/80 MHz; PtMP: 10/20/30/40 MHz
- Operating Temperature:
- -40 to 80 C
- Certifications:
- CE, FCC, IC
- Product Type:
- Power Supply
