U6-Mesh Ubiquiti UniFi WiFi 6 Mesh Access Point

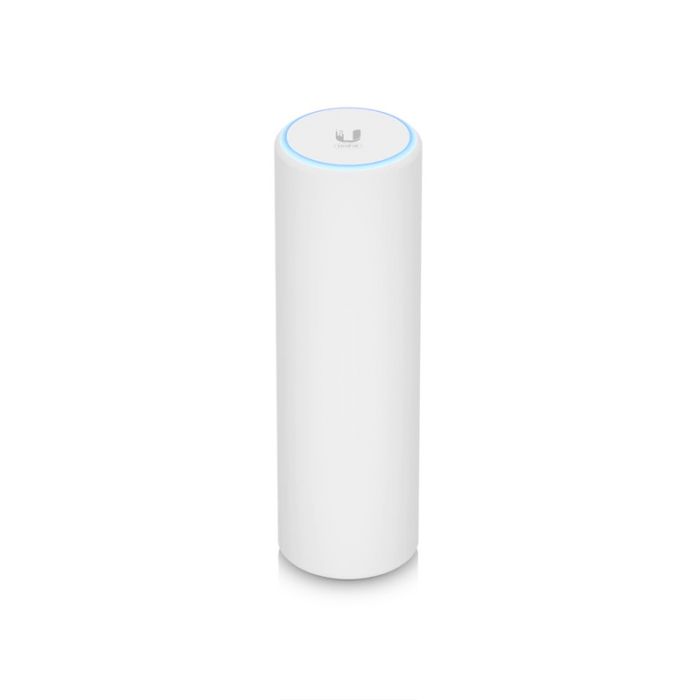

The U6-Mesh is a Ubiquiti UniFi WiFi 6 mesh access point in a compact cylindrical enclosure with one Gigabit RJ45 port. It supports 2.4 GHz 2 x 2 MU-MIMO, 5 GHz 4 x 4 MU-MIMO and stated throughput rates of 573.5 Mbps and 4.8 Gbps respectively.
Designed for flexible wall, desktop and pole mounting, the U6-Mesh supports UniFi wireless coverage in areas where a traditional ceiling AP is not ideal. IPX5 weatherproofing, PoE power and Bluetooth management make it practical for versatile indoor or protected outdoor deployments.
Key Features
- Compact mesh AP format supports flexible UniFi WiFi 6 coverage planning.
- Wall, desktop and pole mounting options help adapt to the installation location.
- IPX5 weatherproofing supports deployment beyond standard indoor ceilings.
- Dual-band MU-MIMO design supports modern high-density wireless use.
- Included PoE power option simplifies single-device installation.
- Catalogue Family:
- NETWORK SWITCH
- Model:
- U6-Mesh
- Dimensions:
- Diameter 48.5 x 159.5 mm
- Weight:
- 400 g
- Enclosure Materials:
- Plastic, aluminium
- Weatherproofing:
- IPX5
- Networking Interface:
- (1) GbE RJ45 port
- Management Interfaces:
- Ethernet, Bluetooth
- Power Method:
- PoE
- Power Supply:
- UniFi PoE switch or 48 V, 0.32 A PoE adapter included
- Max. Power Consumption:
- 11.4 W
- MIMO:
- 2.4 GHz 2 x 2 UL MU-MIMO; 5 GHz 4 x 4 DL/UL MU-MIMO
- Throughput Rate:
- 2.4 GHz 573.5 Mbps; 5 GHz 4.8 Gbps
- Mounting:
- Wall, desktop and pole mount included; ceiling mount optional
- Concurrent Clients:
- 300+
- Operating Temperature:
- -30 to 60 C
- Certifications:
- CE, FCC, IC
- Product Type:
- Network Switch
