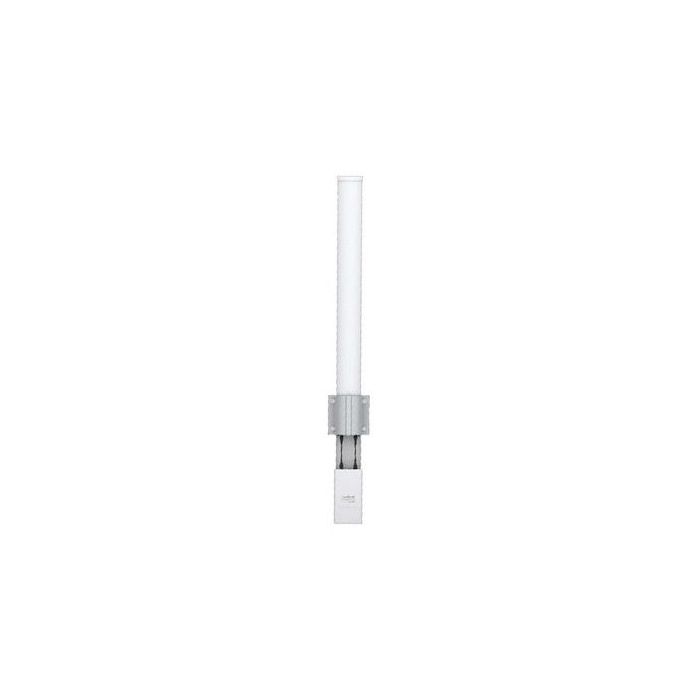

AMO-5G10 Ubiquiti airMAX 5 GHz Omni Antenna - 10 dBi
The AMO-5G10 is a Ubiquiti airMAX 2x2 dual-polarity MIMO omnidirectional antenna for 5 GHz networks. It provides 10 dBi gain across 5.45 - 5.85 GHz with 360 degree airMAX omni coverage when paired with a Rocket radio.
Designed for point-to-multipoint deployments, the antenna gives network builders a compact outdoor omni option for client coverage around a site. The built-in Rocket mount, dual-linear polarisation and pole-mount hardware support practical basestation installation.
Key Features
- Omnidirectional coverage supports client links around the antenna site.
- 2x2 MIMO design supports airMAX network capacity and reliability.
- 10 dBi 5 GHz profile suits compact omni basestation deployments.
- Integrated Rocket mounting reduces installation complexity.
- Outdoor mechanical design supports pole-mounted wireless infrastructure.
- Catalogue Family:
- ACCESSORIES
- Model:
- AMO-5G10
- Antenna Type:
- 2x2 dual-polarity MIMO omni antenna
- Dimensions:
- 582 x 90 x 65 mm
- Weight:
- 0.68 kg
- Frequency Range:
- 5.45 - 5.85 GHz
- Gain:
- 10 dBi
- Elevation Beamwidth:
- 12 deg
- Max. Vswr:
- 1.6:1
- Downtilt:
- 4 deg
- Wind Survivability:
- 200 km/h
- Wind Loading:
- 71.17 N at 200 km/h
- Polarisation:
- Dual-linear
- Cross-Pol Isolation:
- 25 dB minimum
- Etsi Specification:
- EN 302 326 DN2
- Product Type:
- Accessories
