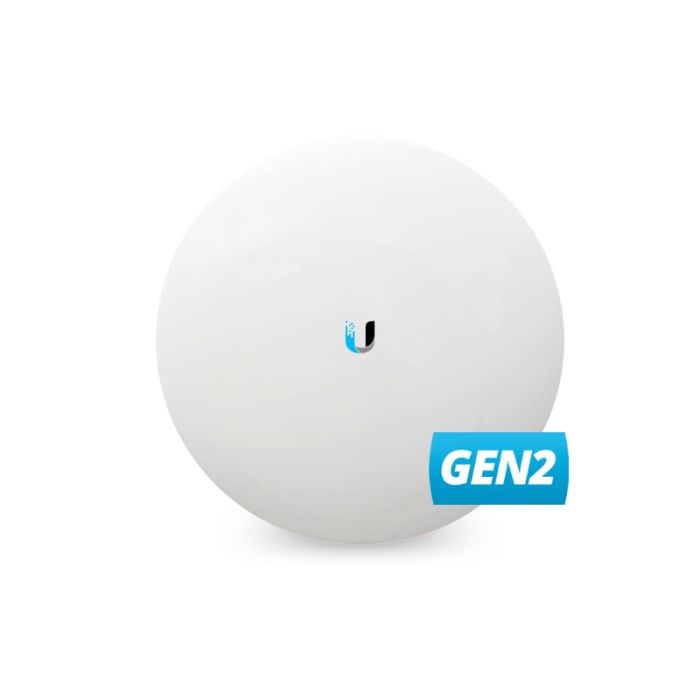

NBE-5AC-Gen2 Ubiquiti NanoBeam 5AC Gen 2 airMAX ac CPE - 19 dBi
The NBE-5AC-Gen2 is a Ubiquiti NanoBeam 5AC Gen 2 airMAX ac CPE with integrated radio and antenna in a compact outdoor form. It provides 19 dBi gain, dual-linear polarisation, dual Gigabit Ethernet ports and a dedicated WiFi management radio.
Designed for point-to-multipoint client links and point-to-point wireless bridges, the NanoBeam 5AC Gen 2 focuses RF energy into a tighter beam to improve noise immunity. airOS 8, airView and UNMS app access support configuration, monitoring and alignment work.
Key Features
- Integrated 19 dBi antenna and radio create a compact outdoor CPE unit.
- Tighter beam focus helps improve noise immunity in crowded RF environments.
- Dedicated WiFi management radio supports quicker setup from a mobile device.
- Dual Gigabit Ethernet ports add flexibility for network integration.
- Ball-joint mounting helps installers aim the link accurately.
- Catalogue Family:
- POWER SUPPLY
- Model:
- NBE-5AC-Gen2
- Dimensions:
- 189 x 189 x 125 mm with mount
- Weight:
- 0.530 kg with mount
- Power Supply:
- 24 V, 0.5 A Gigabit PoE adapter included
- Max. Power Consumption:
- 8.5 W
- Gain:
- 19 dBi
- Networking Interface:
- (2) 10/100/1000 Ethernet ports; WiFi for management
- Processor:
- Atheros MIPS 74Kc, 720 MHz
- Memory:
- 128 MB DDR2, 8 MB Flash
- Max. Vswr:
- 1.5:1
- Channel Sizes:
- PtP: 10/20/30/40/50/60/80 MHz; PtMP: 10/20/30/40 MHz
- Polarisation:
- Dual-linear
- Mounting:
- Pole-mount kit included, wall-mount
- Wind Survivability:
- 200 km/h
- Operating Temperature:
- -40 to 80 C
- Certifications:
- CE, FCC, IC
- Product Type:
- Power Supply
