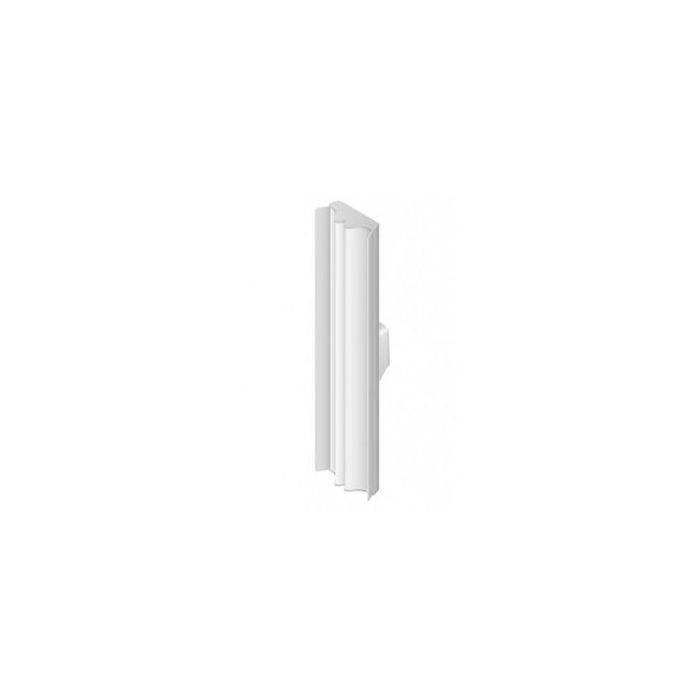

AM-5AC21-60 Ubiquiti airMAX ac 5 GHz Sector Antenna - 21 dBi 60 Degree
The AM-5AC21-60 is a Ubiquiti airMAX ac 2x2 MIMO 5 GHz sector antenna with 21 dBi gain and 60 degree horizontal and vertical beamwidth. It is designed to complement Rocket5ac radios while also remaining compatible with RocketM5 models.
The antenna is built for point-to-multipoint airMAX networks where noise isolation, beam performance and tower co-location matter. Its deflector design, dual-linear polarisation and weather-ready pole mounting support scalable outdoor basestation deployments.
Key Features
- 60 degree sector coverage suits focused point-to-multipoint wireless layouts.
- High gain and reduced sidelobes help improve link quality in noisy RF areas.
- Rocket mounting support streamlines basestation antenna and radio integration.
- Dual-linear polarisation supports 2x2 MIMO airMAX network performance.
- Robust outdoor construction supports deployment on towers and exposed sites.
- Catalogue Family:
- ACCESSORIES
- Model:
- AM-5AC21-60
- Antenna Type:
- 2x2 MIMO BaseStation sector antenna
- Dimensions:
- 750 x 173 x 78 mm
- Weight:
- 4.8 kg
- Frequency Range:
- 5.10 - 5.85 GHz
- Gain:
- 21 dBi
- Hpol Beamwidth:
- 60 deg (6 dBi)
- Vpol Beamwidth:
- 60 deg (6 dBi)
- Electrical Beamwidth:
- 4 deg
- Electrical Downtilt:
- 2 deg
- Max. Vswr:
- 1.5:1
- Wind Survivability:
- 200 km/h
- Polarisation:
- Dual-linear
- Cross-Polarisation Isolation:
- 25 dB minimum
- Etsi Specification:
- EN 302 326 DN1
- Product Type:
- Accessories
