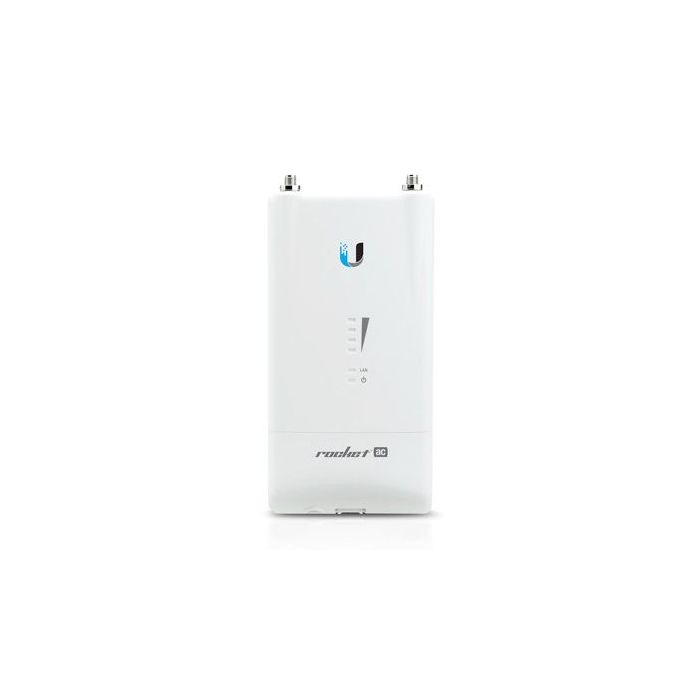

R5AC-Lite Ubiquiti Rocket5ac Lite airMAX ac BaseStation
The R5AC-Lite is a Ubiquiti Rocket5ac Lite airMAX ac BaseStation radio for 5 GHz point-to-point and point-to-multipoint wireless links. It supports airOS 8, airMAX ac protocol operation and up to 500+ Mbps real TCP/IP throughput at maximum 80 MHz channel width.
Designed to pair with airMAX ac antennas, the radio provides flexible channel widths, RF diagnostics and airView spectrum analysis for outdoor wireless network planning. Its Gigabit Ethernet interface, passive PoE power and UV-stabilised enclosure suit field basestation deployments.
Key Features
- airMAX ac support helps deliver high-throughput outdoor wireless links.
- Flexible PtP and PtMP channel widths support different network designs.
- airView tools help identify noise and refine channel selection.
- Gigabit Ethernet interface supports high-capacity backhaul integration.
- Outdoor enclosure and wide temperature rating suit tower or rooftop installation.
- Catalogue Family:
- POWER SUPPLY
- Model:
- R5AC-Lite
- Dimensions:
- 162 x 84 x 37 mm
- Weight:
- 250 g
- Power Supply:
- 24 V, 0.5 A Gigabit PoE adapter
- Power Method:
- Passive PoE, pairs 4,5+ and 7,8 return
- Max. Power Consumption:
- 8.5 W
- Operating Frequency:
- 5150 - 5875 MHz worldwide
- Processor:
- Atheros MIPS 74Kc, 720 MHz
- Memory:
- 128 MB DDR2 SDRAM, 16 MB NOR Flash
- Networking Interface:
- (1) 10/100/1000 Mbps
- RF Connections:
- (2) waterproof RP-SMA
- Channel Sizes:
- PtP: 10/20/30/40/50/60/80 MHz; PtMP: 10/20/30/40 MHz
- Operating Temperature:
- -40 to 80 C
- Wireless Approvals:
- FCC, IC, CE
- Product Type:
- Power Supply
