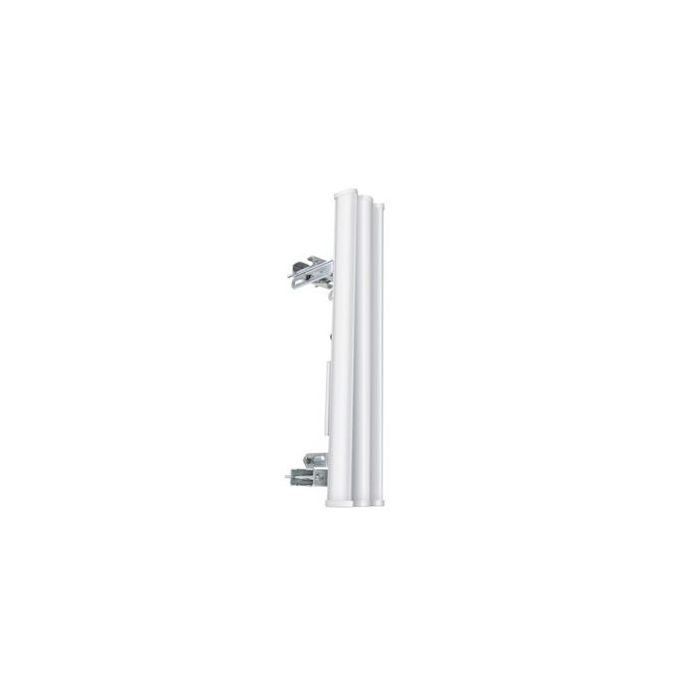

AM-5G20-90 Ubiquiti airMAX 5 GHz Sector Antenna - 20 dBi 90 Degree
The AM-5G20-90 is a Ubiquiti airMAX 2x2 dual-polarity MIMO sector antenna for 5 GHz point-to-multipoint networks. Its model specifications include 19.4 - 20.3 dBi gain across 5.15 - 5.85 GHz with 91 degree HPOL and 85 degree VPOL beamwidth.
It is suitable for outdoor point-to-multipoint wireless deployments. The antenna features dual-linear polarisation, built-in RocketM mounting support, high cross-polar isolation and specified wind survivability.
Key Features
- 90 degree sector antenna.
- 2x2 dual-polarity MIMO design.
- Built-in RocketM mounting support.
- Outdoor-rated construction.
- High cross-polar isolation.
- Catalogue Family:
- ACCESSORIES
- Model:
- AM-5G20-90
- Antenna Type:
- 2x2 dual-polarity MIMO sector antenna
- Dimensions:
- 700 x 135 x 70 mm
- Weight:
- 5.9 kg
- Frequency Range:
- 5.15 - 5.85 GHz
- Gain:
- 19.4 - 20.3 dBi
- Hpol Beamwidth:
- 91 deg (6 dB)
- Vpol Beamwidth:
- 85 deg (6 dB)
- Electrical Beamwidth:
- 4 deg
- Electrical Downtilt:
- 2 deg
- Max. Vswr:
- 1.5:1
- Wind Survivability:
- 200 km/h
- Wind Loading:
- 182 N at 200 km/h
- Polarisation:
- Dual-linear
- Cross-Pol Isolation:
- 28 dB minimum
- Etsi Specification:
- EN 302 326 DN2
- Product Type:
- Accessories
