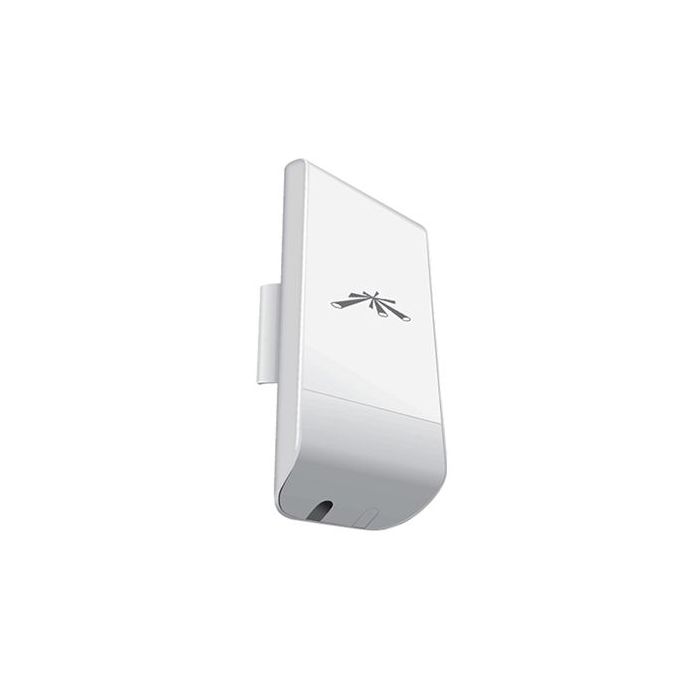

locoM5 Ubiquiti NanoStation Loco M5 airMAX 5 GHz CPE
The locoM5 is a compact Ubiquiti NanoStation Loco M5 airMAX 5 GHz CPE with an integrated 2x2 MIMO antenna. It provides 13 dBi gain, 24 V passive PoE power and a 10/100 Ethernet interface in an outdoor UV-stabilised plastic enclosure.
Designed for cost-effective point-to-multipoint client links and point-to-point wireless bridging, it uses airMAX TDMA technology to improve airtime efficiency, latency and scalability. Its small form factor and included pole-mount kit suit practical outdoor CPE deployments.
Key Features
- Compact CPE format supports economical 5 GHz wireless client deployments.
- Integrated 13 dBi antenna reduces the need for separate radio and antenna hardware.
- airMAX TDMA support helps improve performance in multipoint networks.
- Passive PoE power keeps installation cabling simple.
- Outdoor UV-stabilised enclosure supports pole-mounted field use.
- Catalogue Family:
- POWER SUPPLY
- Model:
- locoM5
- Dimensions:
- 161 x 31 x 80 mm
- Weight:
- 180 g
- Power Supply:
- 24 V, 0.5 A PoE
- Max. Power Consumption:
- 5.5 W
- Power Method:
- Passive PoE, pairs 4,5+ and 7,8 return
- Operating Frequency:
- Worldwide 5170 - 5875 MHz; USA 5725 - 5850 MHz; USA DFS 5250 - 5850 MHz
- Gain:
- 13 dBi
- Networking Interface:
- (1) 10/100 Ethernet port
- Processor:
- Atheros MIPS 74Kc, 560 MHz
- Memory:
- 64 MB DDR2, 8 MB Flash
- Beamwidth:
- 45 deg H-pol, 45 deg V-pol, 45 deg elevation
- Operating Temperature:
- -30 to 75 C
- Wireless Approvals:
- FCC Part 15.247, IC RS210, CE
- Product Type:
- Power Supply
