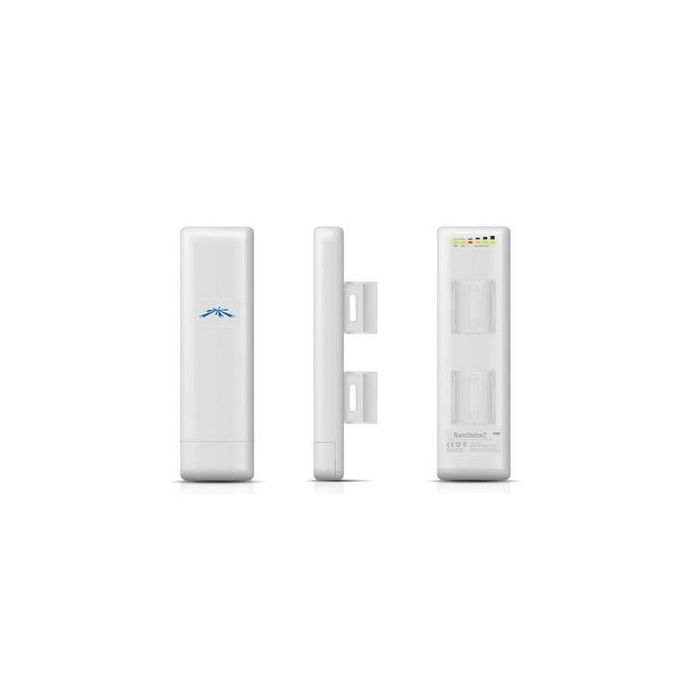

NSM5 Ubiquiti NanoStation M5 airMAX 5 GHz CPE
The NSM5 is a Ubiquiti NanoStation M5 airMAX 5 GHz CPE with an integrated dual-linear antenna, two 10/100 Ethernet ports, 14.6 - 16.1 dBi antenna gain, 24 V passive PoE power, and a UV-stabilised plastic outdoor enclosure.
It supports point-to-multipoint client links and point-to-point wireless connections in airMAX networks. The NanoStationM form factor, pole-mount kit, and dual Ethernet ports support outdoor installation and IP device connectivity.
Key Features
- Integrated 5 GHz antenna and radio for outdoor CPE deployment.
- 14.6 - 16.1 dBi antenna gain for focused wireless links.
- Dual Ethernet ports for network and connected device integration.
- airMAX TDMA support for point-to-multipoint network operation.
- UV-stabilised outdoor enclosure with pole-mount kit for outdoor installation.
- Catalogue Family:
- POWER SUPPLY
- Model:
- NSM5
- Dimensions:
- 294 x 31 x 80 mm
- Weight:
- 400 g
- Power Supply:
- 24 V, 0.5 A PoE
- Max. Power Consumption:
- 8 W
- Power Method:
- Passive PoE, pairs 4,5+ and 7,8 return
- Operating Frequency:
- Worldwide 5170 - 5875 MHz; USA 5725 - 5850 MHz; USA DFS 5250 - 5850 MHz
- Gain:
- 14.6 - 16.1 dBi
- Networking Interface:
- (2) 10/100 Ethernet ports
- Processor:
- Atheros MIPS 74Kc, 560 MHz
- Memory:
- 64 MB DDR2, 8 MB Flash
- Beamwidth:
- 43 deg H-pol, 41 deg V-pol, 15 deg elevation
- Operating Temperature:
- -30 to 75 C
- Wireless Approvals:
- FCC Part 15.247, IC RS210, CE
- Product Type:
- Power Supply
