JPS-4AEDV Aiphone JP Series Video Intercom Kit - JP-DV Surface Zinc Door Station

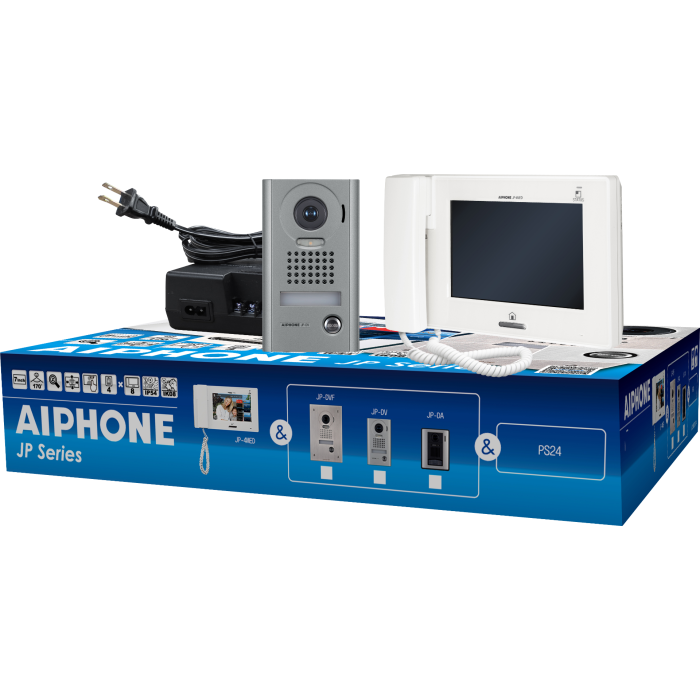

The JPS-4AEDV is an Aiphone JP Series video intercom box set with a JP-4MED master station, JP-DV surface mount zinc die-cast video door station and PS-2420UL power supply. The JP-4MED gives the kit a 7 in colour touchscreen with hands-free or handset communication and picture memory.
It suits surface-mounted JP entrances where a vandal-resistant metal door station is preferred instead of the plastic JP-DA variant. The kit provides a strong starting point for visitor identification, door release and later JP Series expansion.
Key Features
- Combines a JP touchscreen master with a surface zinc die-cast door station.
- Vandal-resistant door-side hardware suits more exposed visitor entry points.
- Hands-free or handset communication supports both convenience and privacy.
- Picture memory helps users review visitor calls after the event.
- JP expansion capability keeps the kit suitable for systems that may grow.
- Catalogue Family:
- INTERCOM
- Model:
- JPS-4AEDV
- Kit Components:
- JP-4MED, JP-DV AND PS-2420UL
- System Type:
- JP SERIES VIDEO INTERCOM BOX SET
- Power Source:
- 24V DC - USE PS-2420UL
- Master Station Display:
- 7 in colour LCD touchscreen
- Communication:
- HANDS-FREE (VOX) OR HANDSET FULL-DUPLEX
- Picture Memory:
- Internal 20 calls; SD/SDHC card 1,000 calls
- Door Station:
- JP-DV VIDEO DOOR STATION
- Door Station Material:
- Zinc die cast
- Door Station Mounting:
- SURFACE MOUNT
- Door Station Suitability:
- Vandal resistant
- Door Station Wiring Distance:
- 330 ft with 18 AWG or 165 ft with Cat5e/6
- Door Release Contacts:
- TWO N/O DRY CONTACTS, 24V AC/DC, 500 MA
- Expansion Context:
- Up to 4 total door stations and up to 7 JP-4HD stations per JP-4MED
- Product Type:
- INTERCOM
- Series:
- JP SERIES
