JVS-1V JV Series Surface Video Intercom Kit

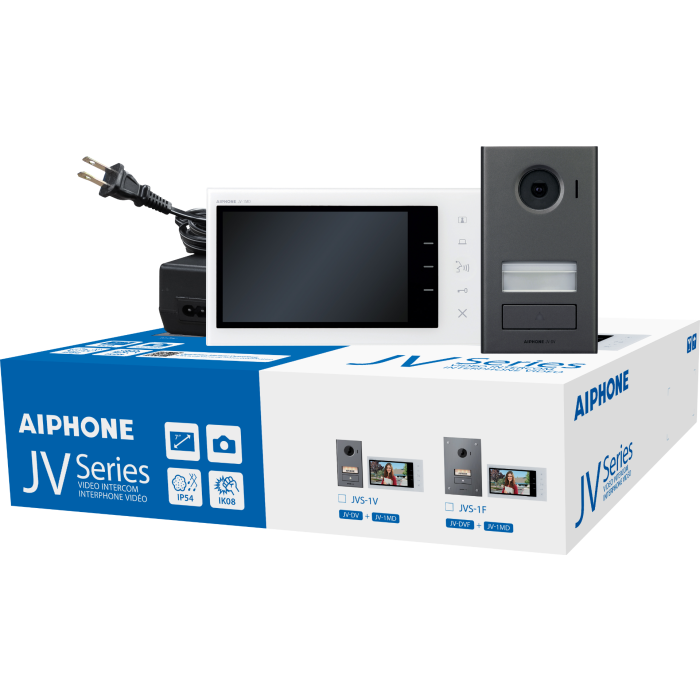

The JVS-1V is an Aiphone JV Series 1-to-1 colour video intercom kit made up of the JV-1MD master station, JV-DV surface-mount vandal-resistant video door station and PS-2420UL power supply. The supplied component datasheets confirm the 7 inch JV-1MD indoor monitor, two-wire door-station connection, picture memory up to 30 call images and door release or option output control.
This version suits installations where a surface-mounted entry station is preferred. The JV-DV door station is with a die-cast aluminium cover, flame resistant ABS main unit, IP54 and IK08 ratings, a white LED illuminator and a lit bell icon, while the PS-2420UL provides the DC 24 V system power supply.
Key Features
- Packages the core JV Series components for a single-door colour video intercom setup.
- Uses a surface-mounted JV-DV door station for entry points where flush mounting is not required.
- Supports practical visitor screening through the JV-1MD 7 inch indoor monitor.
- Gives users hands-free or push-to-talk communication with picture memory for recent calls.
- Includes the DC 24 V power supply to support a complete JV Series kit installation.
- Catalogue Family:
- INTERCOM
- Model:
- JVS-1V
- Product Type:
- Intercom
- Included Master Station:
- JV-1MD
- Included Door Station:
- JV-DV surface-mount vandal-resistant video door station
- Included Power Supply:
- PS-2420UL
- Master Station Screen:
- 7 inch TFT LCD, WVGA
- Master Station Communication:
- Hands-free auto-voice actuation; push-to-talk, release-to-listen
- Master Station Picture Memory:
- Up to 30 call images
- Door Station Material:
- Die-cast aluminium cover; flame resistant ABS main unit
- Door Station Mounting:
- Surface mount
- Door Station Ratings:
- IP54; IK08
- Door Station Camera:
- 1/5 inch colour CMOS
- Door Station Minimum Illumination:
- Approx. 5 lux
- Power Supply Output:
- DC 24 V, 2 A
- Power Supply Input:
- AC 100-240 V, 50/60 Hz
