JPS-4AEDF Aiphone JP Series Video Intercom Kit - JP-DVF Flush Stainless Door Station

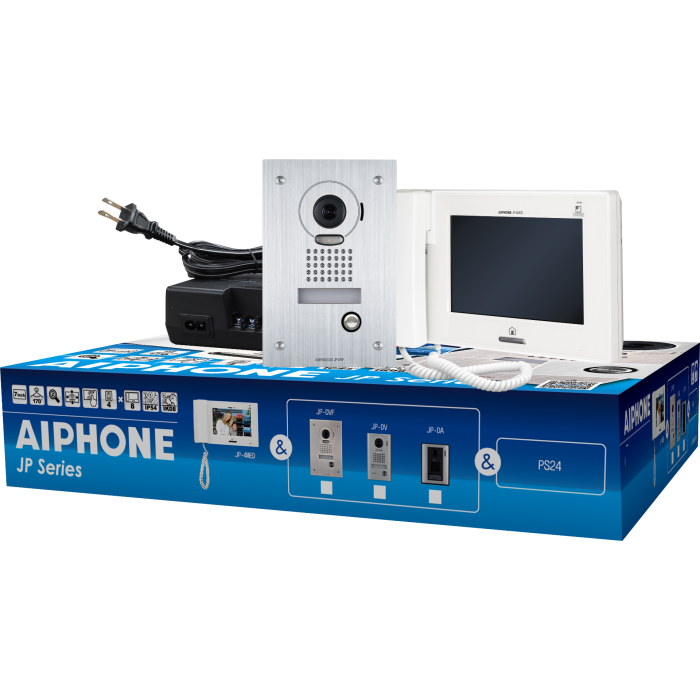

The JPS-4AEDF is an Aiphone JP Series video intercom box set with a JP-4MED master station, JP-DVF flush mount stainless steel video door station and PS-2420UL power supply. The JP-4MED provides a 7 in colour touchscreen with hands-free or handset communication for visitor screening and entry control.
It suits flush-mounted entrances where a stainless steel vandal-resistant door station is preferred with the JP touchscreen master. The JP Series platform supports picture memory, two-conductor door station wiring and expansion beyond the initial one-door kit when required.
Key Features
- Provides a JP kit with a flush stainless steel door station for a neater entry finish.
- Touchscreen master supports clear visitor identification and entry control.
- Hands-free or handset operation lets users choose convenience or privacy.
- Picture memory supports follow-up when visitor calls are missed.
- JP Series expansion options help the system grow beyond a single starting kit.
- Catalogue Family:
- INTERCOM
- Model:
- JPS-4AEDF
- Kit Components:
- JP-4MED, JP-DVF AND PS-2420UL
- System Type:
- JP SERIES VIDEO INTERCOM BOX SET
- Power Source:
- 24V DC - USE PS-2420UL
- Master Station Display:
- 7 in colour LCD touchscreen
- Communication:
- HANDS-FREE (VOX) OR HANDSET FULL-DUPLEX
- Picture Memory:
- Internal 20 calls; SD/SDHC card 1,000 calls
- Door Station:
- JP-DVF VIDEO DOOR STATION
- Door Station Material:
- Stainless steel
- Door Station Mounting:
- FLUSH MOUNT WITH BACK BOX INCLUDED
- Door Station Suitability:
- Vandal resistant
- Door Station Wiring Distance:
- 330 ft with 18 AWG or 165 ft with Cat5e/6
- Door Release Contacts:
- TWO N/O DRY CONTACTS, 24V AC/DC, 500 MA
- Expansion Context:
- Up to 4 total door stations and up to 7 JP-4HD stations per JP-4MED
- Product Type:
- INTERCOM
- Series:
- JP SERIES
