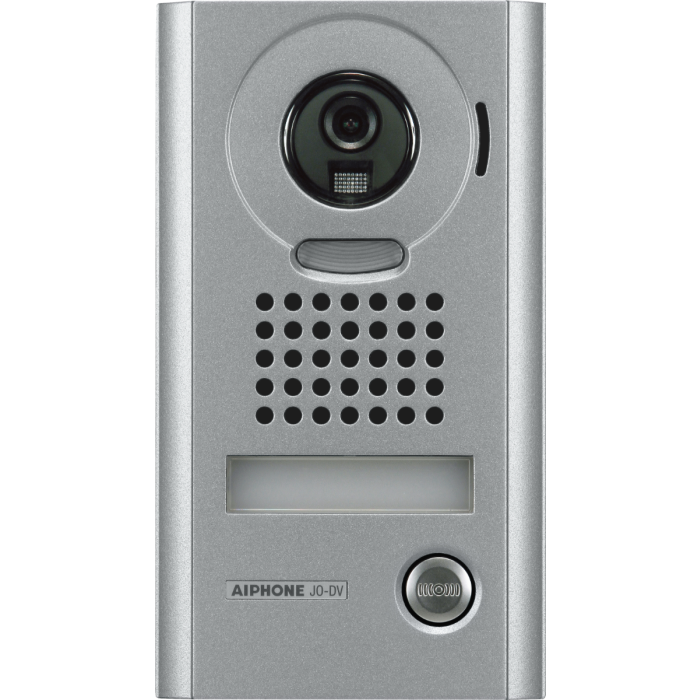

JO-DV Aiphone JO Series Surface Mount Zinc Die Cast Video Door Station
The JO-DV is an Aiphone JO Series surface-mount colour video door station with a zinc die-cast front panel. It operates as a camera door station with hands-free communication controlled by the JO master or expansion station.
It suits JO entry intercom installations where a surface-mounted camera station is required at the doorway. The supported details include two-conductor wiring to the master, white LED low-light support, IP54 and IK08 ratings and a 330 ft wiring distance on Aiphone 871802 cable.
Key Features
- Surface-mount video door station format is practical for retrofit and exposed wall locations.
- Zinc die-cast front panel supports a robust visitor-facing entry point.
- Camera, microphone, speaker and call button are integrated into the door station.
- White LED illumination helps maintain visibility in low-light conditions.
- Two-conductor wiring keeps JO door-station cabling straightforward.
- Catalogue Family:
- INTERCOM
- Model:
- JO-DV
- Product Type:
- INTERCOM
- Power Source:
- SUPPLIED FROM JO SERIES MASTER, EXPANSION OR GUARD STATION
- Communication:
- HANDS-FREE COMMUNICATION CONTROLLED BY MASTER STATION
- Camera:
- CMOS
- Minimum Illumination:
- 5 lux
- Wiring:
- 2-CONDUCTOR PE INSULATION, AIPHONE WIRE 871802
- Wiring Distance:
- 330 ft
- Operating Temperature:
- -20 TO +60 DEG C
- Mounting:
- SURFACE WALL MOUNT
- Material:
- PLASTIC
- Dimensions:
- 179 H x 98 W x 26.8 D mm
- Weight:
- Approx. 650 g
- Ratings:
- IP54, IK08
- Series:
- JO SERIES
