JPS-4AED Aiphone JP Series Video Intercom Kit - JP-DA Surface Door Station

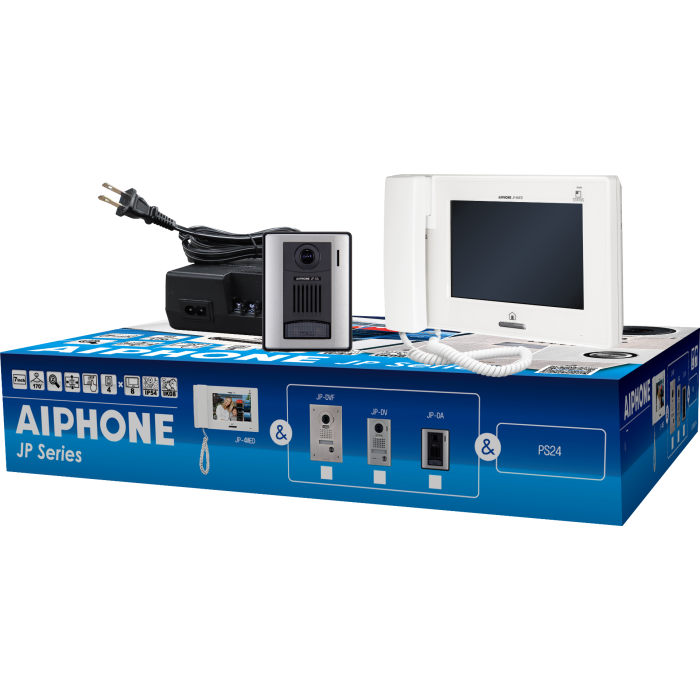

The JPS-4AED is an Aiphone JP Series video intercom box set with a JP-4MED master station, JP-DA surface mount plastic video door station and PS-2420UL power supply. The JP-4MED provides a 7 in colour touchscreen, handset or hands-free communication and picture memory for visitor calls.
It suits a one-door surface-mount JP installation where a plastic colour video door station is preferred with a full JP touchscreen master. The JP Series platform also supports expansion with additional door stations and JP-4HD inside stations when the installation grows.
Key Features
- Combines the JP-4MED master, JP-DA door station and PS-2420UL supply in one JP starting kit.
- Surface plastic door station suits straightforward single-door mounting.
- Touchscreen master helps users identify visitors and control entry from inside.
- Picture memory gives users a record of visitor calls for later review.
- JP Series expansion path supports larger layouts when additional stations are required.
- Catalogue Family:
- INTERCOM
- Model:
- JPS-4AED
- Kit Components:
- JP-4MED, JP-DA and PS-2420UL
- System Type:
- JP Series video intercom box set
- Power Source:
- 24V DC - use PS-2420UL
- Master Station Display:
- 7 in colour LCD touchscreen
- Master Station Communication:
- Hands-free (VOX) or handset full-duplex
- Picture Memory:
- Internal 20 calls; SD/SDHC card 1,000 calls
- Door Station:
- JP-DA surface mount plastic colour video door station
- Door Station Camera:
- 1/4 in colour CMOS
- Door Station Wiring:
- 18 AWG 2-conductor solid core cable
- Door Station Wiring Distance:
- 330 ft to master station
- Door Station Dimensions:
- 5-1/16 in H x 3-13/16 in W x 1-3/16 in D (129 x 97 x 30.5 mm)
- Door Station Weight:
- Approx. 170 g
- Door Release Contacts:
- Two N/O dry contacts, 24V AC/DC, 500 mA
- Product Type:
- Intercom
