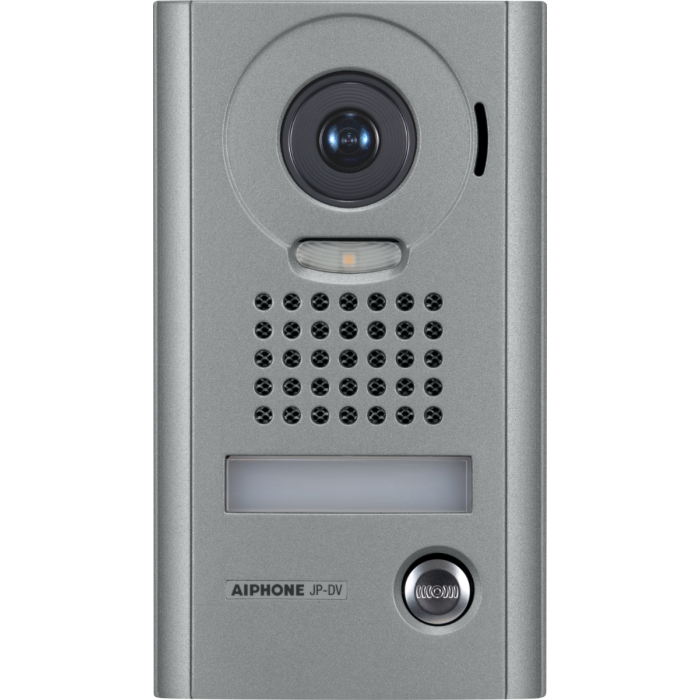

JP-DV Aiphone JP Series Surface Mount Zinc Die Cast Video Door Station
The JP-DV is an Aiphone JP Series surface-mount vandal-resistant colour video door station. It combines a 1/4 inch colour CMOS camera, 5 lux minimum illumination, a wide 170 degree camera angle and power supplied from the JP master station.
It suits JP installations that need a more robust surface-mounted entry station with a zinc die-cast front panel. The IP54 and IK08 ratings, hands-free communication and single-gang mounting option make it suitable for visitor entry points that need a tougher faceplate.
Key Features
- Zinc die-cast front panel gives the entry station a robust surface-mounted format.
- Wide camera coverage assists visitor viewing from the JP master station.
- Hands-free voice communication supports clear two-way door interaction.
- IP54 and IK08 ratings help align the station with demanding entry locations.
- Single-gang box compatibility simplifies common wall-mount installations.
- Catalogue Family:
- INTERCOM
- Model:
- JP-DV
- Product Type:
- Intercom
- Power Source:
- Supplied from master station
- Communication:
- Open voice hands-free communication
- Camera:
- 1/4 inch colour CMOS
- Minimum Illumination:
- 5 lux
- Camera Angle:
- Wide 170 degree approx. horizontal
- Ambient Temperature:
- -10 to +60 deg C
- Mounting:
- Surface wall mount, directly to wall or electrical box
- Electrical Box:
- Single-gang box
- Housing:
- Zinc die-cast front panel
- Dimensions:
- 173 H x 98 W x 27 D mm
- Weight:
- Approx. 650 g
- Ratings:
- IP54, IK08
