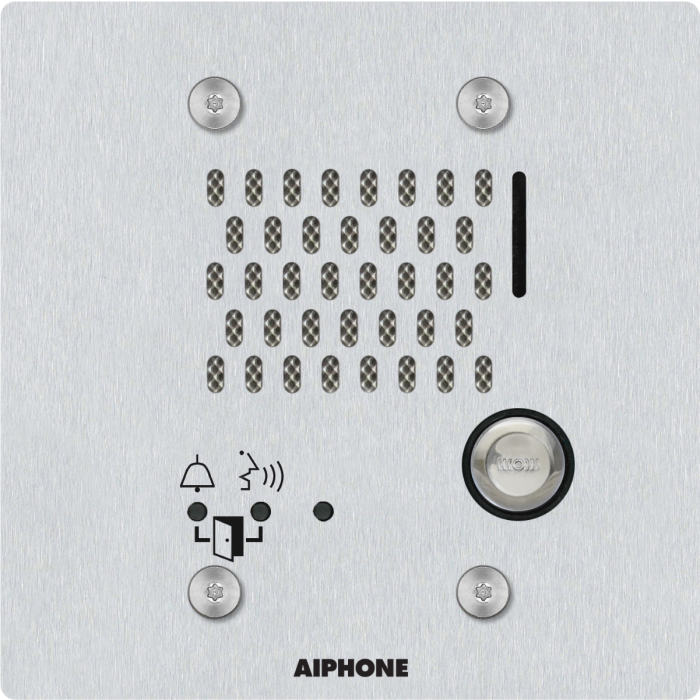

IX-SS-2G Aiphone IX Series 2 Gang IP Audio Door Station - Stainless Steel
The IX-SS-2G is an Aiphone IX Series 2-gang audio flush-mount IP door station with a stainless steel front plate for networked entry communication. It connects over Cat-5e/6 cabling, is powered by PoE to IEEE 802.3af Class 0, and supports SIP 2.0 operation with G.711 and G.722 audio codecs.
Designed for IX Series door-entry applications, the station can be programmed to call up to 20 stations with three selectable call levels. Uploaded sound files and audible or visual indications support clearer feedback during call placement, communication, door release and error events.
Key Features
- 2-gang flush-mount format supports a clean wall-integrated entry station layout.
- Programmable call destinations help route visitor calls to the right IX stations for the site.
- Three selectable call levels allow response priority to be matched to operational needs.
- Custom sound files can guide users through call, communication, door-release and error events.
- IX Series operation with or without other IX stations supports flexible deployment planning.
- Catalogue Family:
- INTERCOM
- Model:
- IX-SS-2G
- Product Type:
- Intercom
- Series:
- Aiphone IX Series
- Mounting:
- 2-gang flush mount
- Material:
- Stainless Steel
- Network Cabling:
- Cat-5e/6
- Power Source:
- PoE (IEEE 802.3af Class 0)
- Power Draw:
- 3.36 W
- Audio Codec:
- G.711 (u-law, A-law), G.722
- Protocols:
- IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
- Port Security:
- IEEE 802.1X
- Call Capacity:
- Up to 20 stations
- Call Levels:
- 3
- Contact Output:
- 1
- Trigger Input:
- 1
- LAN Port:
- 1 PoE LAN port
- Ul Listing:
- UL 62368-1; cUL 62368-1
- Operating Temperature:
- -40 deg F to 140 deg F (-40 deg C to 60 deg C)
- Ingress Protection:
- IP65
- Impact Protection:
- IK08
- Dimensions:
- 4-3/4 in H x 4-3/4 in W
