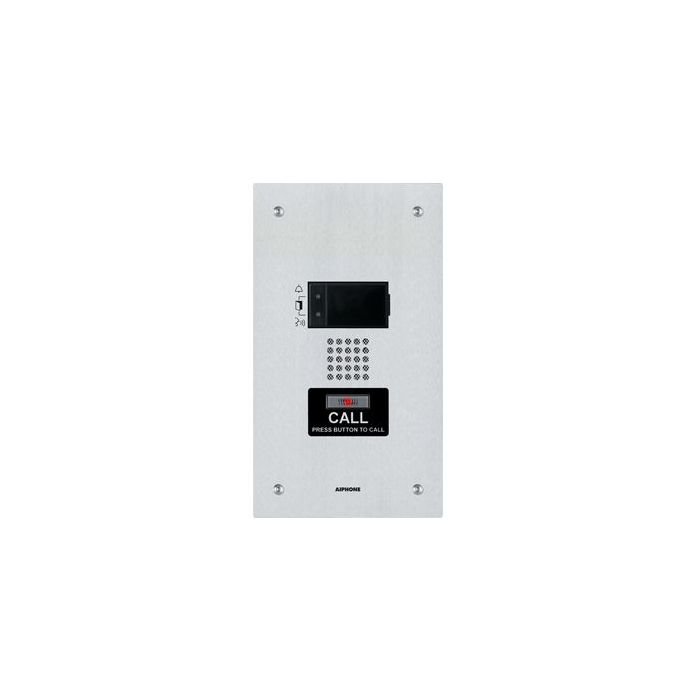

IX-SS Aiphone IX Series IP Audio Door Station - Stainless Steel Flush Mount
The IX-SS is an Aiphone IX Series IP addressable stainless steel flush mount audio-only door station. It connects to the network using CAT-5e/6 cabling, is 802.3af PoE compliant, and uses open-voice hands-free communication through its built-in microphone, speaker, status LEDs, and call button.
Suited to indoor or outdoor entry points, the weather-resistant IX-SS can call up to 20 master stations, with an additional 20 master stations callable using the contact input. It includes a built-in dry contact for door release rated at 24V AC/DC, 500 mA, is designed for flush mounting with the supplied back box, and may be surface mounted with the SBX-ISDVF.
Key Features
- Audio-only door-station design supports clear visitor communication at IX Series entry points.
- Weather-resistant IP55-rated construction suits exposed indoor or outdoor door locations.
- Hands-free open-voice operation helps visitors communicate without a handset at the entrance.
- Master-station call routing supports planned response paths across an IX installation.
- Door-release control allows access actions to be handled through the connected intercom workflow.
- Catalogue Family:
- INTERCOM
- Model:
- IX-SS
- Product Type:
- Intercom
- Series:
- Aiphone IX Series
- Material:
- Stainless Steel
- Mounting:
- Flush mount with supplied back box; surface mount with SBX-ISDVF
- Power Source:
- 802.3af PoE compliant
- Communication:
- Open voice, hands-free
- Wiring:
- CAT-5e or CAT-6
- Wiring Distance:
- 100 m (330 ft)
- Door Release:
- 24V AC/DC, 500 mA (N/O, COM, N/C)
- Call Capacity:
- Up to 20 master stations; additional 20 master stations using contact input
- Operating Temperature:
- -40 deg F to 140 deg F (-40& deg C to 60& deg C)
- Ingress Protection:
- IP55
- Dimensions:
- 10-7/16 in H x 5-7/8 in W x 2 in D
- Front Features:
- Microphone, status LEDs, speaker, call button
- Contact Input:
- Form C dry contact (N/O or N/C), level detection method
- Relay Output:
- Form C dry contact (N/O or N/C), AC/DC 24V, 0.5 A resistive load
- Audio Output:
- 600 ohm output impedance; 300 mVrms output audio level when terminated
