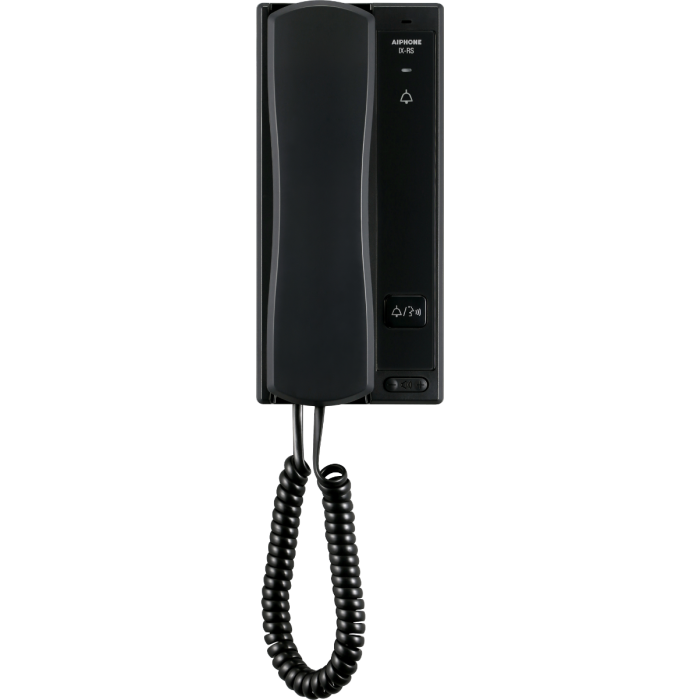

IX-RS-B Aiphone IX Series Audio Handset Sub Station - Flat Black
The IX-RS-B is a flat black Aiphone IX Series PoE handset sub station for IP intercom audio communication over 10BASE-T/100BASE-TX Ethernet. It supports handset full-duplex communication, hands-free automatic voice switching with push-to-talk, G.711 and G.722 audio, unicast and multicast packet delivery, and calling to up to 20 stations.
Designed for wall-mounted sub-station locations, the unit works with a 1-gang box and provides a call/talk button, unlocking button, and status, call, communication, and unlocking indicators. Its functions include group calling, contact-input calling, page reception, door unlocking while receiving a call or during communication, and event email notifications for supported IX system workflows.
Key Features
- Handset and hands-free modes give users practical audio call options in IX installations.
- Group and contact-input call functions support routed communication beyond a single fixed station.
- Page reception helps announcements reach internal areas served by the station.
- Door-unlock operation during calls supports controlled access workflows from the station.
- Dedicated indicators make call, communication, status, and unlocking states easy to recognise.
- Catalogue Family:
- INTERCOM
- Model:
- IX-RS-B
- Product Type:
- Intercom
- Series:
- Aiphone IX Series
- Power Source:
- Power-over-Ethernet (IEEE 802.3af Class 0)
- Current Consumption:
- Standby 38 mA, maximum 75 mA
- Communication:
- Hands-free automatic voice switching/PTT; handset full-duplex
- LAN:
- Ethernet (10BASE-T, 100BASE-TX)
- Audio Codec:
- G.711 (u-law/A-law), G.722
- Protocols:
- IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
- Encryption Method:
- TLS1.0, TLS1.1, TLS1.2
- Packet Delivery:
- Unicast, multicast
- Number of Called Stations:
- 20 stations
- Ambient Temperature:
- 0 deg C to 40 deg C (32 deg F to 104 deg F)
- Mounting:
- Wall-mount
- Electrical Box:
- 1-gang box
- Material:
- Plastic
- Unit Colour:
- Flat black (N2 Munsell Approximation)
- Dimensions:
- 90 mm W x 192 mm H x 67 mm D
- Weight:
- 520 g approx.
- Handset Cord:
- 230 mm unexpanded; maximum 1,500 mm
- External Speaker Output:
- 8 ohm output impedance; maximum 2 W
