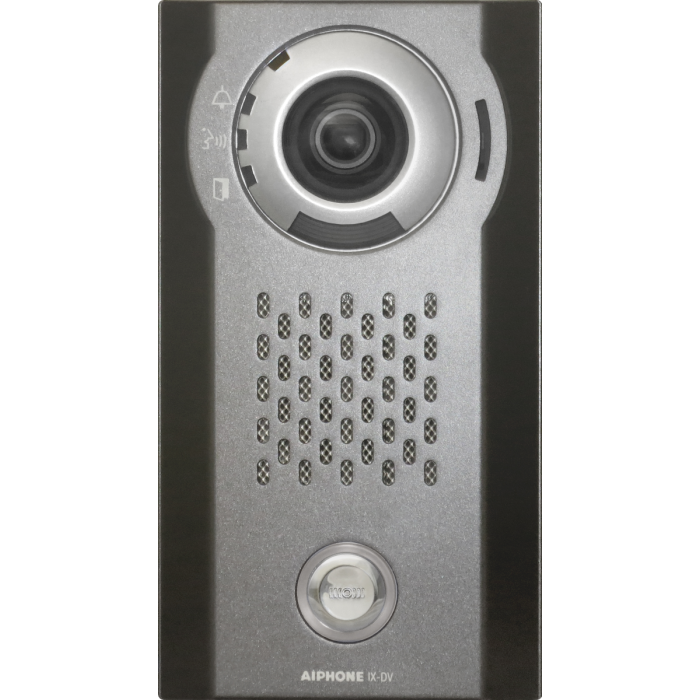

IX-DV Aiphone IX Series Vandal Resistant IP Video Door Station - Surface Mount
The IX-DV is a surface mount Aiphone IX Series IP video door station for networked entry communication. It connects over Cat-5e/6 cabling, supports SIP 2.0 and ONVIF Profile S, and combines hands-free audio with a 1.23 megapixel fixed colour camera, white low-light LED and call button in a wall-mounted unit.
Designed for exposed doorway positions, the station uses a die-cast aluminium dark sepia metallic front panel, IP54 weather protection and IK08 impact resistance. PoE or 24V DC power, programmable calling to up to 20 stations, microSD audio/video capture and visual status indicators help it suit commercial IX Series entrance points.
Key Features
- Surface mount format suits wall installation where a recessed box is not required.
- Network-based video entry design supports practical visitor screening from IX Series stations.
- Weather and impact ratings support use in exposed access areas.
- Low-light illumination and manual camera adjustment improve doorway visibility in varied conditions.
- Programmable calling, event alerts and recording functions support more complete entry workflows.
- Catalogue Family:
- INTERCOM
- Model:
- IX-DV
- Product Type:
- Intercom
- Mounting:
- Wall-mount
- Power Source:
- Power-over-Ethernet (IEEE 802.3af/at Class 0) or 24V DC external power supply
- Current Consumption:
- PoE standby 72 mA; PoE maximum 155 mA; 24V DC standby 130 mA; 24V DC maximum 300 mA
- Communication:
- Hands-free automatic voice switching
- Camera:
- 1/3-inch colour CMOS SXVGA 1280 x 960, approx. 1.2 megapixels
- Minimum Illumination:
- 5 lux
- LAN:
- Ethernet 10BASE-T/100BASE-TX, Auto MDI/MDI-X
- Audio Codec:
- G.711 (mu-law, A-law), G.722
- Video Codec:
- H.264/AVC, Motion JPEG
- Protocols:
- IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
- Encryption:
- TLS 1.0, TLS 1.1, TLS 1.2
- Called Stations:
- 20 stations
- Operating Temperature:
- -40 to +60 deg C (-40 to +140 deg F)
- Material:
- Aluminium
- Finish:
- Dark sepia metallic front panel
- Dimensions:
- 207 H x 115 W x 52.5 D mm
- Weight:
- Approx. 770 g (1.7 lbs)
- Protection Ratings:
- IP54, IK08
- ONVIF:
- ONVIF Profile S support
