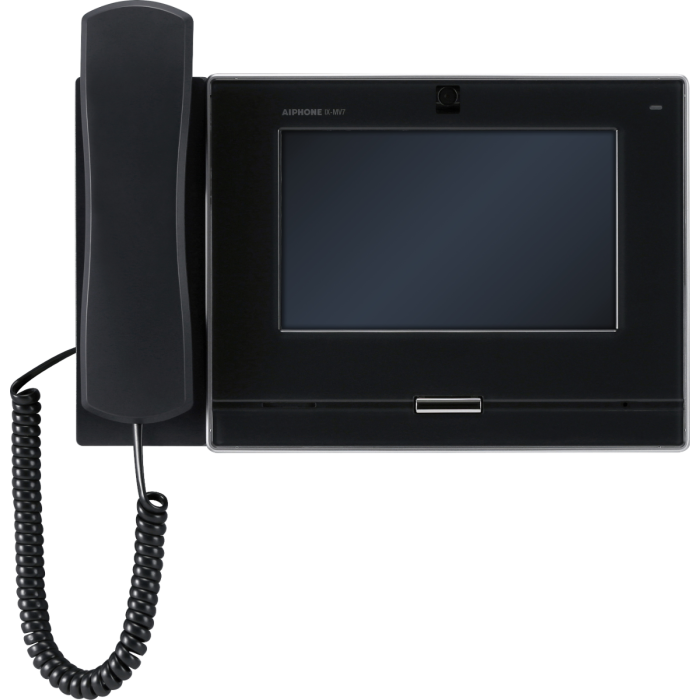

IX-MV7-HB Aiphone IX Series 7 Inch Touchscreen Master Station with Handset - Black
The IX-MV7-HB is a flat black Aiphone IX Series PoE master station with a handset, 7 inch TFT colour touchscreen, built-in camera, microphone, speaker, and 10BASE-T/100BASE-TX Ethernet connection. It supports hands-free automatic voice switching with push-to-talk, handset full-duplex communication, H.264/AVC and Motion JPEG video, G.711 and G.722 audio, and an address book for up to 500 stations.
Suited to reception desks, security points, and wall-mounted control locations, the station can be used on a desktop stand or wall-mounted with a 3-gang box. It supports door-station and network-camera monitoring, microSD audio and video recording, call transfer, auto answer, group paging, door unlocking during communication or monitoring, ONVIF event notifications, and I/O connections for wider site workflows.
Key Features
- Integrated handset and hands-free modes give operators flexible ways to handle calls.
- Desktop or wall mounting supports both staffed desks and fixed control locations.
- Door-station and network-camera monitoring helps operators assess activity before access actions.
- Transfer, auto-answer, and scheduled call handling support organised response workflows.
- Contact inputs, relay outputs, and external audio interfaces help connect the station with site systems.
- Catalogue Family:
- INTERCOM
- Model:
- IX-MV7-HB
- Product Type:
- Intercom
- Series:
- Aiphone IX Series
- Display:
- 7 inch TFT colour LCD, WVGA 800 x 480, approx. 1,150,000 pixels
- Camera:
- 1/4 inch colour CMOS, VGA 640 x 480, approx. 300,000 pixels
- Power Source:
- Power-over-Ethernet (IEEE 802.3af Class 0)
- Current Consumption:
- Standby 66 mA, maximum 155 mA
- Communication:
- Hands-free automatic voice switching/PTT; handset full-duplex
- LAN:
- Ethernet (10BASE-T, 100BASE-TX)
- Audio Codec:
- G.711 (u-law/A-law), G.722
- Video Codec:
- H.264/AVC, Motion JPEG
- Protocols:
- IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
- Encryption Method:
- TLS1.0, TLS1.1, TLS1.2
- Packet Delivery:
- Unicast, multicast
- Address Book Capacity:
- 500 stations
- Ambient Temperature:
- 0 deg C to 40 deg C (32 deg F to 104 deg F)
- Mounting:
- Desktop use with desktop stand or wall-mount
- Electrical Box:
- 3-gang box
- Material:
- Plastic
- Unit Colour:
- Flat black (N2 Munsell Approximation)
- Weight:
- 1.0 kg approx.; 1.2 kg approx. when used with desk stand
- Dimensions:
- 280 mm W x 204 mm H x 55.5 mm D
- Handset Cord:
- 230 mm unexpanded; maximum 1,500 mm
- Contact Inputs:
- 4 contact inputs
- Relay Outputs:
- 2 Form C relay outputs
- External Speaker Output:
- 8 ohm, maximum 0.5 W
- Paging Audio Input:
- 600 ohm input impedance, 50 mVrms input audio level
- Remarks:
- ONVIF Profile S support
