IX-SSA-RA Aiphone IX Series Emergency IP Audio Door Station - Stainless Steel

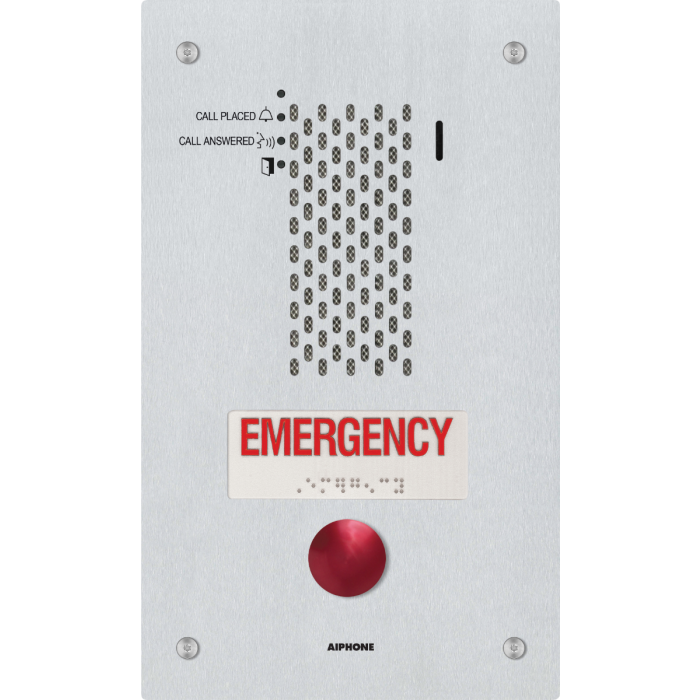

The IX-SSA-RA is an Aiphone IX Series flush wall-mount IP emergency audio door station with a stainless steel front panel, single emergency call button, raised lettering and braille signage. It supports hands-free automatic voice switching and can be powered by PoE or a 24V DC external power supply.
Designed for emergency communication and rescue-assistance applications, the station can call up to 20 stations and provides indicators for calling, communication and door release. It also supports microSD call-audio recording, a 600 ohm audio output, two relay outputs, six contact inputs, and custom or schedule-linked message functions.
Key Features
- Single emergency call button with raised lettering and braille signage
- Flush wall-mount design with a stainless steel front panel
- Programmable emergency calling for up to 20 assigned IX stations
- Six contact inputs and two relay outputs for system integration
- Email notifications and schedule-linked message functions
- Catalogue Family:
- INTERCOM
- Model:
- IX-SSA-RA
- Product Type:
- Intercom
- Series:
- Aiphone IX Series
- Emergency Interface:
- Single emergency call button with raised lettering and braille signage
- Mounting:
- Flush wall-mount
- Power Source:
- PoE (IEEE 802.3af/at Class 0) or 24V DC external power supply
- Current Consumption:
- PoE: standby 72 mA, standby with continuous recording 77 mA, maximum 155 mA; 24V DC: standby 130 mA, standby with continuous recording 140 mA, maximum 300 mA
- Communication Type:
- Hands-free automatic voice switching
- LAN:
- Ethernet (10BASE-T, 100BASE-TX), MDI (Auto MDI/MDI-X)
- Audio Codec:
- G.711 (u-law, A-law), G.722
- Protocols:
- IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
- Encryption Method:
- TLS1.0, TLS1.1, TLS1.2
- Packet Delivery:
- Unicast
- Number of Called Stations:
- 20 stations
- Audio Recording:
- Record call audio to a microSD card at the start of or during a call
- Audio Output:
- 600 ohm output; 300 mVrms with 600 ohm terminal
- Relay Outputs:
- 2 Form C dry contact outputs, N/O or N/C
- Contact Inputs:
- 6
- Material:
- Stainless Steel
- Finish:
- Front panel stainless steel, vertical hair-line processed
- Weight:
- Unit approx. 1.5 kg; box approx. 860 g
- Dimensions:
- Front panel: 297 mm H x 178 mm W x 63 mm D; box: 267 mm H x 148 mm W x 60 mm D
- Ambient Temperature:
- -40 deg C to +60 deg C (-40 deg F to +140 deg F)
- IP Rating:
- IP65
- IK Rating:
- IK08
