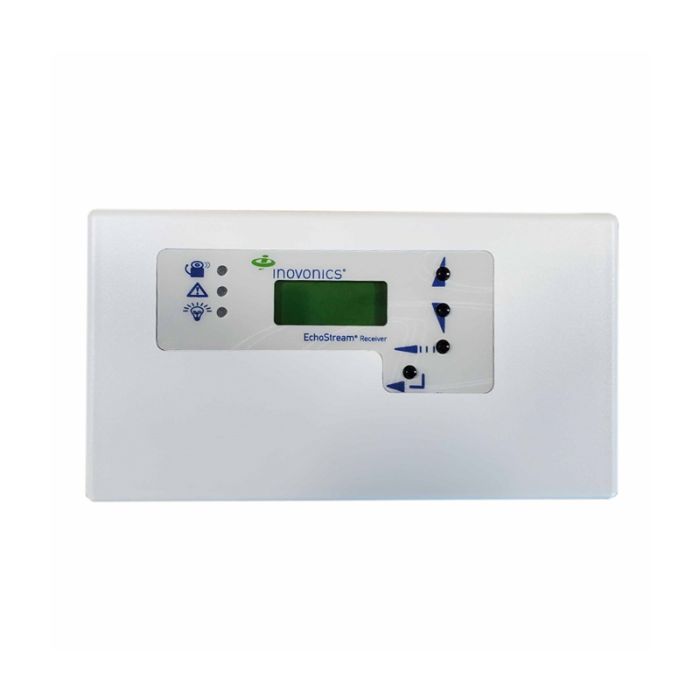

EN4216MR 16 Zone Multi-Condition Receiver with Relay Outputs
The EN4216MR is an Inovonics 16 zone multi-condition receiver with relay outputs for supervising up to 16 single or multiple condition transmitters. It provides Form C relays to connect EchoStream wireless points to hardwired panels or stand-alone wireless applications.
Its two-line display shows transmitter conditions, logs past events and displays signal strength, supporting commissioning and service work. Configurable relay behaviour, tamper protection and jam detection help the receiver fit a broad range of commercial security integrations.
Key Features
- Supervises up to 16 transmitters for larger wireless-to-relay integrations
- Multi-condition support suits more capable transmitter applications
- Two-line display helps technicians review conditions, event history and signal strength
- Configurable outputs allow the receiver response to match system requirements
- Tamper and jam detection add security context to the wireless receiver installation
- Catalogue Family:
- AERIALS
- Market:
- North America, Australia and New Zealand
- Echostream Frequency:
- 902-928 MHz frequency hopping spread spectrum
- Dimensions:
- 6.5 x 3.6 x 1.025 in
- Weight:
- 9.9 oz (280 g)
- Power Requirement:
- 11-14 VDC; 400 mA
- Output Specifications:
- Form C relay 1 A at 28 VDC, 0.5 A at 30 VAC resistive load
- Input Specifications:
- Low is less than 0.5 V; high is greater than 2.5 V
- Reset Input:
- Contact closure, momentary low
- Points/Transmitters:
- 16
- Alarm Outputs:
- Five Form C relay outputs
- Fault Outputs:
- One Form C relay output
- Operating Temperature:
- 32 to 140 F
- Humidity:
- Up to 90% non-condensing
- Regulatory Compliance:
- FCC, Industry Canada, RoHS, AS/NZS 4268:2008, UL 365, UL 636, UL 985, UL 1023, ULC/ORD-C1023-74, UL 1610 and UL 1076
- Product Type:
- Aerials
