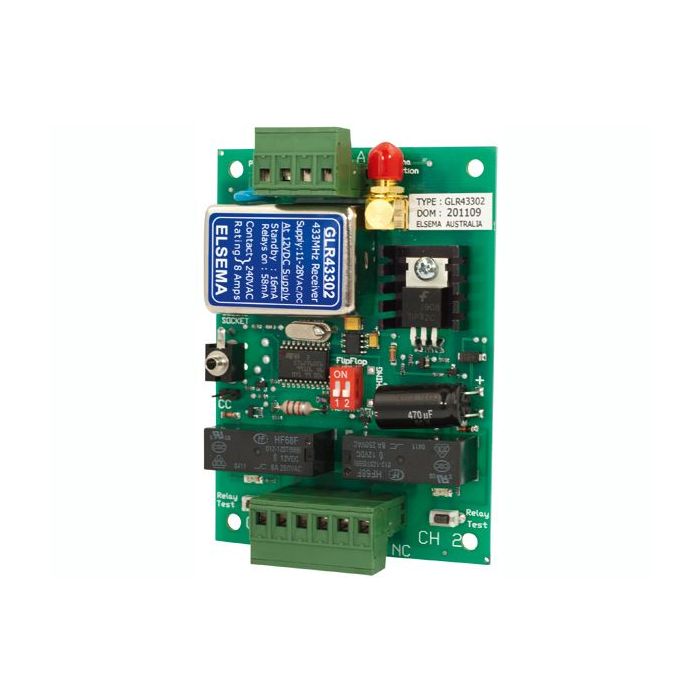

GLR43302 2 Channel 433 MHz Gigalink Receiver
The GLR43302 is a 2-channel Elsema Gigalink receiver for 433 MHz remote-control switching. It accepts 12 to 24 V AC or DC supply, provides two changeover relay outputs rated at 8 A at 240 V each, and uses a microcontroller-based 96-bit decoding system.
Designed for automatic gates, security systems and simple on/off control, the GLR43302 allows both outputs to be operated simultaneously and supports user-selectable momentary, latching and security-latching modes. Test buttons, a power LED and screw terminal connection support installation and maintenance checks.
Key Features
- Two relay outputs allow separate controlled loads or paired access functions from one receiver.
- Both outputs can operate simultaneously where the application requires it.
- Selectable relay modes make the receiver adaptable to gate, alarm or on/off control needs.
- Test buttons help verify relay wiring without relying only on a transmitter signal.
- Gigalink coding supports large-code remote-control operation for matching GLT transmitters.
- Catalogue Family:
- POWER SUPPLY
- Supply Voltage:
- 12 to 24 V AC or DC
- Current Consumption:
- 8 mA standby at 12 V DC; 45 mA with relay on at 12 V DC
- Receiving Frequency:
- 433.920 MHz
- Operating Temperature:
- -5 to 50 deg C
- Sensitivity:
- Better than 1.0 uV for output switching
- Decoding System:
- Microcontroller based 96-bit word
- Code Combinations:
- 4,294,967,296
- Outputs:
- 2 changeover relay outputs each rated at 8 A at 240 V
- Connections:
- Screw type terminal block
- Dimensions:
- 95 x 70 x 30 mm
- Weight:
- 70 g
- Usable Transmitters:
- Elsema 433 MHz GLT series
- Product Type:
- Power Supply
