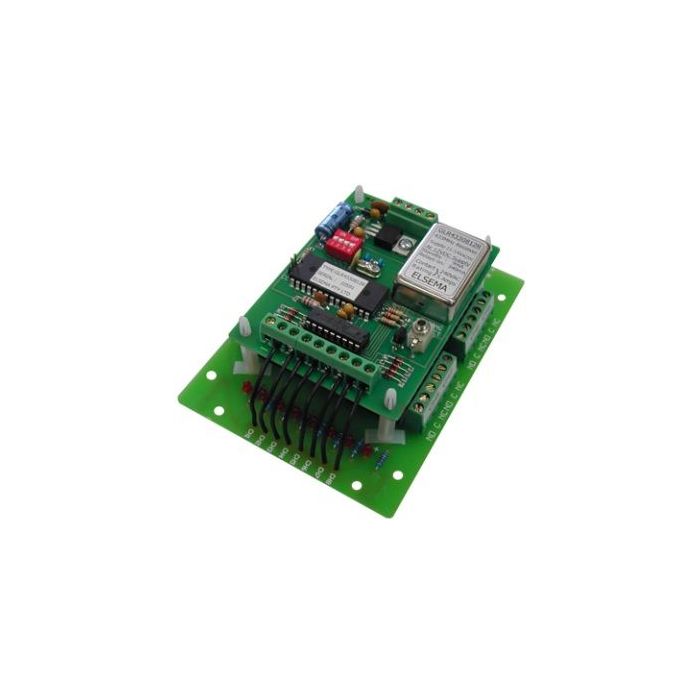

GLR4330812R GIGALINK 8-Channel 433 MHz Receiver with Relay Outputs
The GLR4330812R is an Elsema GIGALINK 8-channel 433 MHz remote control receiver with relay outputs. It operates from a 12-24 V AC/DC power supply and provides eight changeover relay outputs rated at 8 A, 240 VAC, with microcontroller-based coding and user-selectable output modes.
It is suited to remote-control switching applications including automatic gates, security systems, timer-controlled outputs, industrial machine monitoring, crane control, level monitoring and multiple on/off functions. It is compatible with Elsema Type 433 MHz GLT series transmitters and Elsema ANT433MHz series antennas, and supports an approximately 690 mm wire antenna for short-range applications.
Key Features
- Eight relay outputs support multiple switching applications.
- Selectable momentary, latching and security latching modes support flexible operation.
- Microcontroller-based coding provides high-capacity secure code storage.
- 12–24 V AC/DC operation supports a wide range of low-voltage installations.
- Compatible with Elsema GIGALINK 433 MHz transmitters and antennas.
- Catalogue Family:
- POWER SUPPLY
- Product Type:
- Power Supply
- Supply Voltage:
- 12-24 V AC or DC
- Current Consumption:
- 10 mA standby; 340 mA if all outputs are on
- Receiving Frequency:
- 433.920 MHz
- Operating Temperature:
- -5 to 50 deg C
- Outputs:
- Eight changeover relay outputs rated at 8 A 240 VAC
- Output Modes:
- Momentary, latching and security latching
- Antenna Options:
- Elsema ANT433MHz series antennas or approximately 690 mm wire for short-range applications
- Dimensions:
- 130 x 95 x 45 mm
- Mounting Hole Size:
- 3.97 mm or 5/32 inch
- Mounting Hole Spacing:
- Length 85 mm (3.34 in); width 60 mm (2.36 in)
