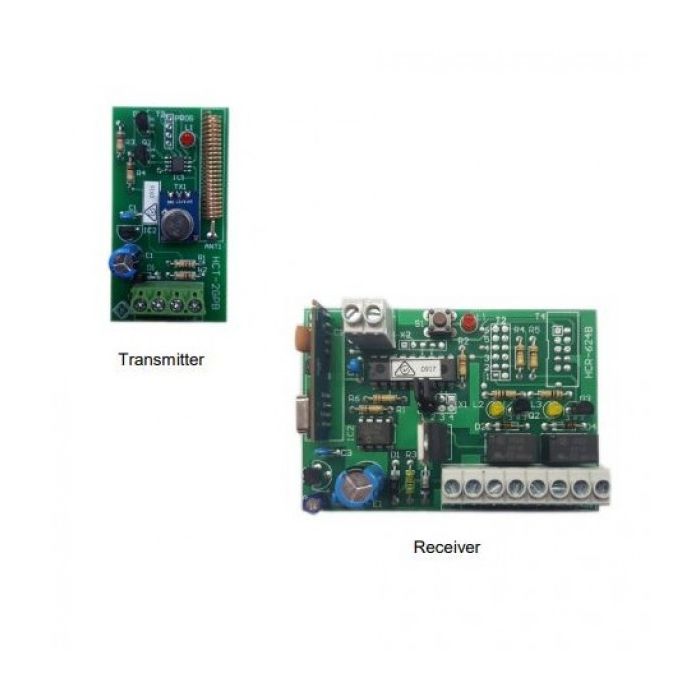

PTP-RXTX-2 2 Channel General Purpose Wireless Link Kit
The PTP-RXTX-2 is a two channel general purpose wireless link kit with a transmitter and receiver for low-voltage control applications. The transmitter inputs are triggered to ground, while the receiver provides two SPDT relay outputs and 433.92 MHz Keeloq code hopping RF signalling.
It is suited to alarm-panel output control tasks such as remote gate or door operation where wiring to the controlled device has not been installed. The kit is supplied with the transmitter learned to the receiver, with both relay outputs set as momentary and setup options for latching one output.
Key Features
- Two channel wireless link supports remote low-voltage control tasks.
- SPDT relay outputs provide practical switching interfaces for external devices.
- Code hopping RF signalling supports secure transmitter-to-receiver operation.
- Supplied learned setup helps reduce commissioning effort.
- Compact enclosures support installation near triggering and controlled equipment.
- Wiring:
- Hardwired
- Product Type:
- Alarm Panel
