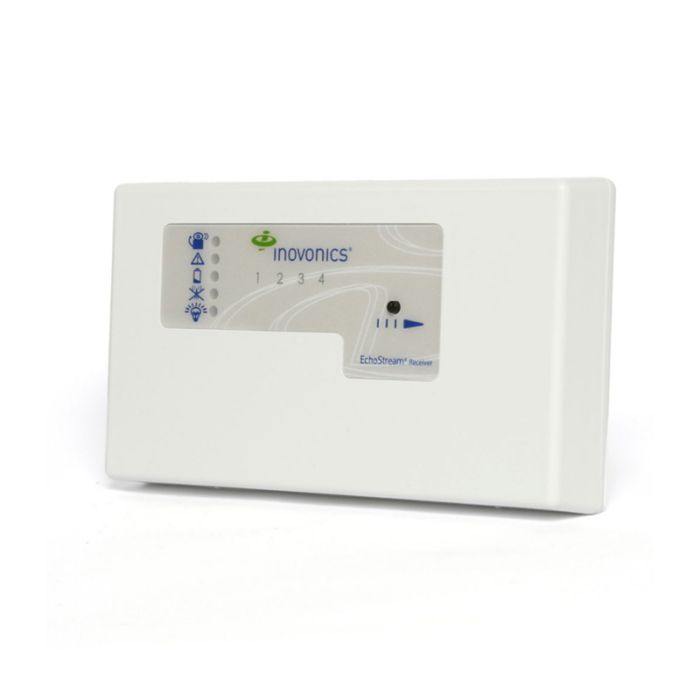

EN4204R Four Zone Add-On Receiver with Relay Outputs
The EN4204R is an Inovonics four zone add-on receiver with relay outputs that programmes and supervises up to four Inovonics transmitters. It provides Form C relay outputs for connection to a hardwired panel or stand-alone wireless application.
The receiver is useful where EchoStream wireless transmitters need to be presented as relay outputs to an existing alarm system. Configurable output modes, status LEDs, case tamper and jam detection support a practical and secure bridge between wireless points and wired control equipment.
Key Features
- Adds up to four supervised Inovonics transmitters to relay-based systems
- Form C relay outputs support integration with hardwired panels and stand-alone applications
- Configurable output modes help match the receiver to the required alarm behaviour
- Status LEDs make transmitter conditions easier to check during service
- Case tamper and jam detection support a more secure wireless implementation
- Catalogue Family:
- ALARM / INTRUSION
- Market:
- North America, Australia and New Zealand
- Echostream Frequency:
- 902-928 MHz frequency hopping spread spectrum
- Dimensions:
- 6.5 x 3.6 x 1.025 in
- Weight:
- 9.9 oz (280 g)
- Power Requirement:
- 11-14 VDC; 400 mA
- Output Specifications:
- Form C relay 1 A at 28 VDC, 0.5 A at 30 VAC resistive load
- Input Specifications:
- Low is less than 0.5 V; high is greater than 2.5 V
- Reset Input:
- Contact closure, momentary low
- Points/Transmitters:
- Four
- Alarm Outputs:
- Four Form C relay outputs
- Fault Outputs:
- One Form C relay output
- Operating Temperature:
- 32 to 140 F
- Humidity:
- Up to 90% non-condensing
- Regulatory Compliance:
- FCC, Industry Canada, RoHS, AS/NZS 4268:2008, UL 365, UL 636, UL 985, UL 1023, ULC/ORD-C1023-74, UL 1610 and UL 1076
- Product Type:
- Alarm / Intrusion
