HID-40NKS-01 HID Signo 40 Wall Switch Reader - Seos Profile

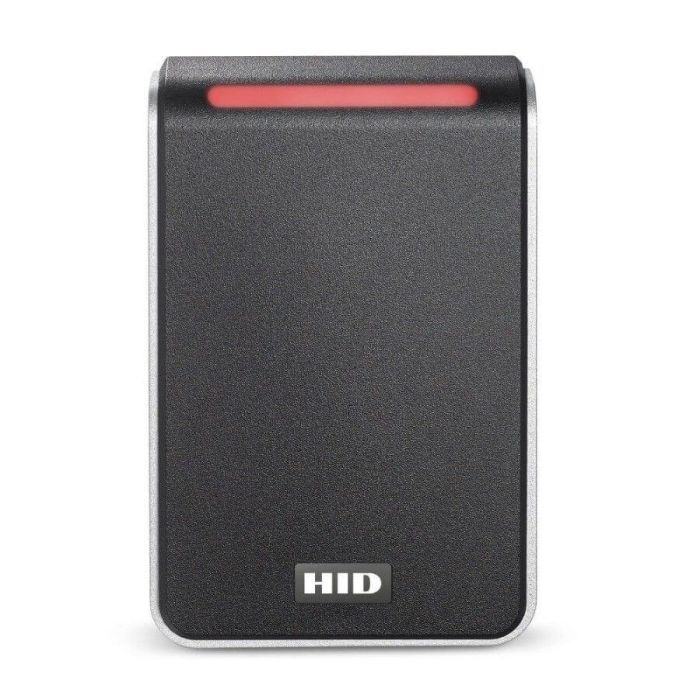

The HID-40NKS-01 is a black HID Signo 40 wall-switch reader with a silver trim baseplate, pigtail connection and Seos Profile. It supports Seos credentials and HID Mobile Access Seos mobile IDs via NFC and Bluetooth.
The reader is designed to mount over and cover single-gang switch boxes and provides Wiegand and RS-485 OSDP communication, IP65 environmental protection and configuration through HID Reader Manager or OSDP.
Key Features
- Wall switch reader format helps match the reader to the door, frame or wall position.
- Native Bluetooth and NFC support helps prepare sites for mobile credential use.
- OSDP support enables secure bidirectional reader communication where configured.
- IP65 outdoor and indoor rating supports exposed access-control locations.
- Reader Manager and OSDP configuration support easier setup and future updates.
- Catalogue Family:
- READERS
- Model:
- 40
- Keypad:
- No
- Mounting Style:
- Suited to cover single gang switch boxes with a slotted mounting plate
- Wiring Connection:
- Pigtail
- Credential Profile:
- Seos profile for Seos and mobile ID credential use
- Dimensions:
- 80 x 121.5 x 19.5 mm
- Weight:
- 140 g pigtail
- Colour:
- Black/Silver
- Operating Voltage:
- 12 V DC
- Operating Temperature:
- -35 deg C to +66 deg C
- Operating Humidity:
- 0% to 95% non-condensing
- Storage Temperature:
- -40 deg C to +85 deg C
- Environmental Rating:
- UL294 outdoor and indoor rated, IP65
- Transmit Frequency:
- 125 kHz, 13.56 MHz and 2.4 GHz
- Communications:
- Wiegand and RS-485 half duplex OSDP
- Device Management:
- HID Reader Manager / OSDP configuration
- Product Type:
- Readers
