HID-20NKS-02 HID Signo 20 Mullion Reader - Smart Profile

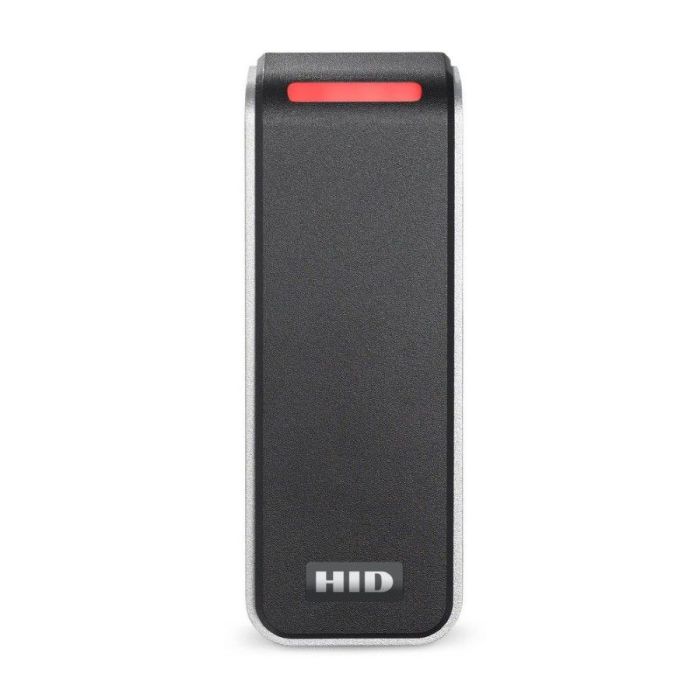

The HID-20NKS-02 is a black HID Signo 20 mullion reader with a silver trim baseplate, pigtail connection and Smart Profile. It supports Seos, iCLASS SE, iCLASS SR, iCLASS, selected MIFARE DESFire and MIFARE Classic credentials, and mobile IDs via NFC and Bluetooth.
The reader is suited to mullion-mount door installations or flat-surface mounting and provides Wiegand and RS-485 OSDP communication, IP65 environmental protection and configuration through HID Reader Manager or OSDP.
Key Features
- Mullion reader format helps match the reader to the door, frame or wall position.
- Native Bluetooth and NFC support helps prepare sites for mobile credential use.
- OSDP support enables secure bidirectional reader communication where configured.
- IP65 outdoor and indoor rating supports exposed access-control locations.
- Reader Manager and OSDP configuration support easier setup and future updates.
- Catalogue Family:
- READERS
- Model:
- 20
- Keypad:
- No
- Mounting Style:
- Suited for mullion-mount door installations or any flat surface mounting
- Wiring Connection:
- Pigtail
- Credential Profile:
- Smart profile for Seos, iCLASS and MIFARE high-frequency smart credentials with mobile ID support
- Dimensions:
- 45 x 121.5 x 19.5 mm
- Weight:
- 95 g pigtail
- Colour:
- Black/Silver
- Operating Voltage:
- 12 V DC
- Operating Temperature:
- -35 deg C to +66 deg C
- Operating Humidity:
- 0% to 95% non-condensing
- Storage Temperature:
- -40 deg C to +85 deg C
- Environmental Rating:
- UL294 outdoor and indoor rated, IP65
- Transmit Frequency:
- 125 kHz, 13.56 MHz and 2.4 GHz
- Communications:
- Wiegand and RS-485 half duplex OSDP
- Device Management:
- HID Reader Manager / OSDP configuration
- Product Type:
- Readers
