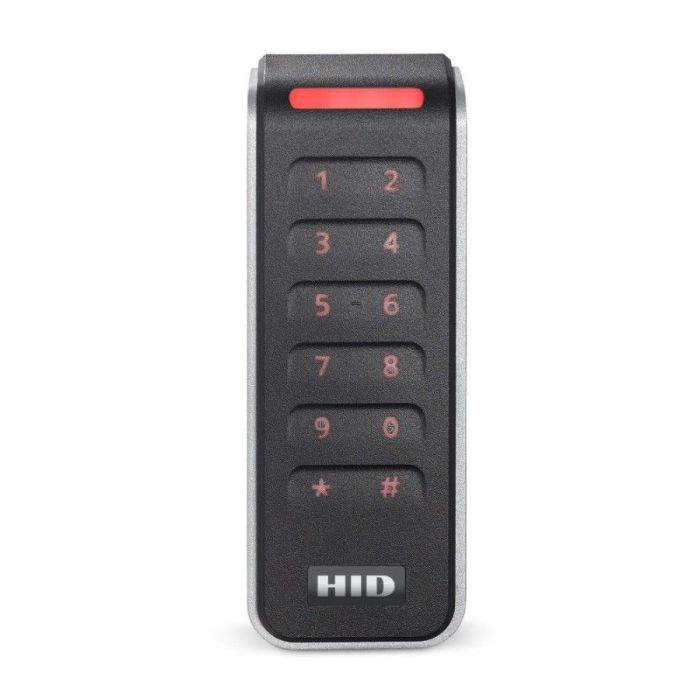

HID-20KNKS-02 HID Signo 20K Mullion Keypad Reader - Smart Profile
The HID-20KNKS-02 is an HID Signo 20K mullion keypad reader with a Smart Profile, suited to electronic access-control installations requiring mobile-ready and OSDP-capable reader hardware.
The Smart Profile supports Seos, iCLASS SE, iCLASS SR, iCLASS, supported MIFARE DESFire and MIFARE Classic credentials, and mobile IDs via NFC and Bluetooth.
Key Features
- Mullion reader format helps match the reader to the door, frame or wall position.
- Native Bluetooth and NFC support helps prepare sites for mobile credential use.
- OSDP support enables secure bidirectional reader communication where configured.
- IP65 outdoor and indoor rating supports exposed access-control locations.
- Reader Manager and OSDP configuration support easier setup and future updates.
- Catalogue Family:
- READERS
- Model:
- 20K
- Keypad:
- Yes - 2 x 6 capacitive keypad
- Mounting Style:
- Suited for mullion-mount door installations or any flat surface mounting
- Wiring Connection:
- Pigtail
- Credential Profile:
- Smart profile for Seos, iCLASS and MIFARE high-frequency smart credentials with mobile ID support
- Dimensions:
- 45 x 121.5 x 21.5 mm
- Weight:
- 110 g pigtail
- Colour:
- Black/Silver
- Operating Voltage:
- 12 V DC
- Operating Temperature:
- -35 deg C to +66 deg C
- Operating Humidity:
- 0% to 95% non-condensing
- Storage Temperature:
- -40 deg C to +85 deg C
- Environmental Rating:
- UL294 outdoor and indoor rated, IP65
- Transmit Frequency:
- 125 kHz, 13.56 MHz and 2.4 GHz
- Communications:
- Wiegand and RS-485 half duplex OSDP
- Device Management:
- HID Reader Manager / OSDP configuration
- Product Type:
- Readers
