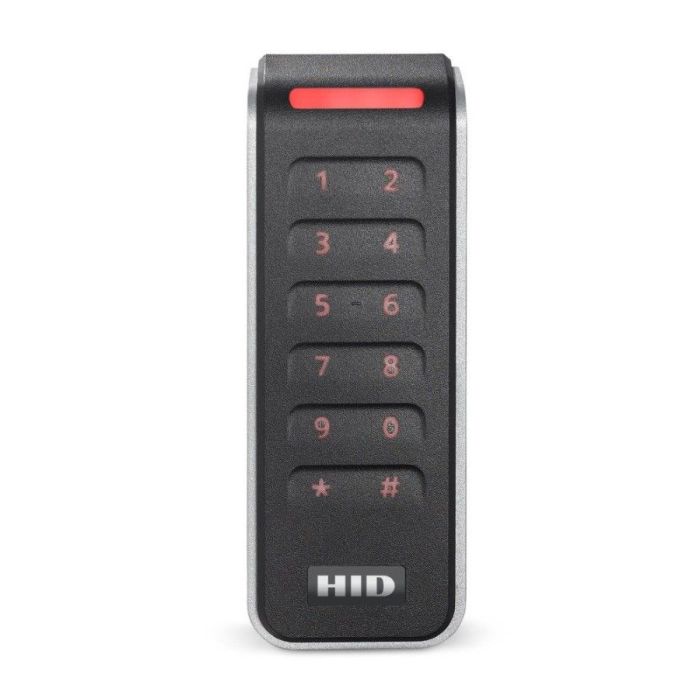

HID-20KNKS-00 HID Signo 20K Mullion Keypad Reader - Standard Profile
The HID-20KNKS-00 is an HID Signo 20K mullion keypad reader with a Standard Profile. It supports Seos, iCLASS, supported MIFARE and 125 kHz proximity credentials, together with HID Mobile Access mobile IDs via NFC and Bluetooth.
Key Features
- Mullion reader with 2 x 6 capacitive keypad.
- Supports Bluetooth and NFC mobile credentials.
- Supports Wiegand and OSDP communications.
- IP65 rated for indoor and outdoor use.
- Compatible with HID Reader Manager and OSDP configuration.
- Catalogue Family:
- READERS
- Model:
- 20K
- Keypad:
- Yes - 2 x 6 capacitive keypad
- Mounting Style:
- Mullion mount or flat surface mount
- Wiring Connection:
- Pigtail
- Credential Profile:
- Standard multiclass profile for Seos, iCLASS, MIFARE, mobile IDs and supported low-frequency proximity credentials
- Dimensions:
- 45 x 121.5 x 21.5 mm
- Weight:
- 110 g (pigtail)
- Colour:
- Black/Silver
- Operating Voltage:
- 12 V DC
- Operating Temperature:
- -35 deg C to +66 deg C
- Operating Humidity:
- 0% to 95% non-condensing
- Storage Temperature:
- -40 deg C to +85 deg C
- Environmental Rating:
- UL294 outdoor and indoor rated, IP65
- Transmit Frequency:
- 125 kHz, 13.56 MHz and 2.4 GHz
- Communications:
- Wiegand and RS-485 half-duplex OSDP
- Device Management:
- HID Reader Manager / OSDP configuration
- Product Type:
- Readers
