HID-40KNKS-00 HID Signo 40K Wall Switch Keypad Reader - Standard Profile

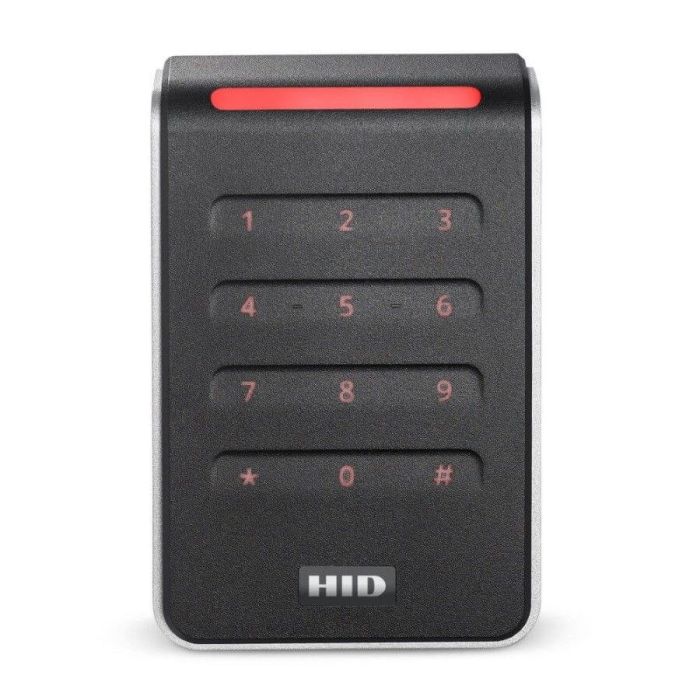

The HID-40KNKS-00 is a black HID Signo 40K wall-switch reader with a 3 x 4 capacitive keypad, silver trim baseplate, pigtail connection and Standard Profile. It supports Seos, iCLASS, selected MIFARE and supported 125 kHz proximity credentials, together with HID Mobile Access mobile IDs via NFC and Bluetooth.
The reader is suited to mounting over single-gang switch boxes and provides Wiegand and RS-485 OSDP communication, IP65 environmental protection and configuration through HID Reader Manager or OSDP.
Key Features
- Wall switch reader format helps match the reader to the door, frame or wall position.
- Native Bluetooth and NFC support helps prepare sites for mobile credential use.
- OSDP support enables secure bidirectional reader communication where configured.
- IP65 outdoor and indoor rating supports exposed access-control locations.
- Reader Manager and OSDP configuration support easier setup and future updates.
- Catalogue Family:
- READERS
- Model:
- 40K
- Keypad:
- Yes - 3 x 4 capacitive keypad
- Mounting Style:
- Suited to cover single gang switch boxes with a slotted mounting plate
- Wiring Connection:
- Pigtail
- Credential Profile:
- Standard multiclass profile for Seos, iCLASS, MIFARE, mobile IDs and supported low-frequency proximity credentials
- Dimensions:
- 80 x 121.5 x 21.5 mm
- Weight:
- 160 g pigtail
- Colour:
- Black/Silver
- Operating Voltage:
- 12 V DC
- Operating Temperature:
- -35 deg C to +66 deg C
- Operating Humidity:
- 0% to 95% non-condensing
- Storage Temperature:
- -40 deg C to +85 deg C
- Environmental Rating:
- UL294 outdoor and indoor rated, IP65
- Transmit Frequency:
- 125 kHz, 13.56 MHz and 2.4 GHz
- Communications:
- Wiegand and RS-485 half duplex OSDP
- Device Management:
- HID Reader Manager / OSDP configuration
- Product Type:
- Readers
