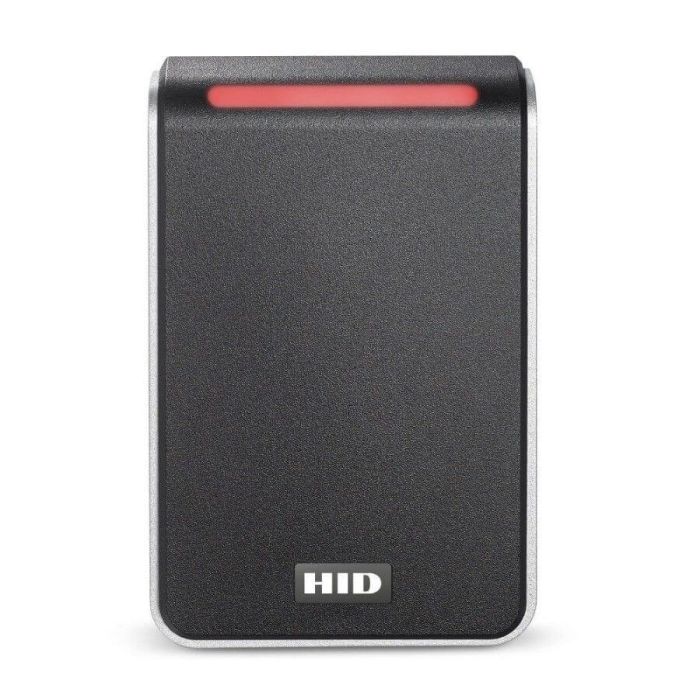

HID-40NKS-02 HID Signo 40 Wall Switch Reader - Smart Profile
The HID-40NKS-02 is an HID Signo 40 wall-switch reader with a Smart Profile, pigtail connection, black body and silver trim. It supports Seos, iCLASS and MIFARE smart credentials together with HID Mobile Access mobile credentials.
The reader is designed to mount over single-gang switch boxes and supports Bluetooth, NFC, Wiegand and RS-485 OSDP communication for secure electronic access control.
Key Features
- Wall switch reader format helps match the reader to the door, frame or wall position.
- Native Bluetooth and NFC support helps prepare sites for mobile credential use.
- OSDP support enables secure bidirectional reader communication where configured.
- IP65 outdoor and indoor rating supports exposed access-control locations.
- Reader Manager and OSDP configuration support easier setup and future updates.
- Catalogue Family:
- READERS
- Model:
- 40
- Keypad:
- No
- Mounting Style:
- Suited to cover single gang switch boxes with a slotted mounting plate
- Wiring Connection:
- Pigtail
- Credential Profile:
- Smart profile for Seos, iCLASS and MIFARE high-frequency smart credentials with mobile ID support
- Dimensions:
- 80 x 121.5 x 19.5 mm
- Weight:
- 140 g pigtail
- Colour:
- Black/Silver
- Operating Voltage:
- 12 V DC
- Operating Temperature:
- -35 deg C to +66 deg C
- Operating Humidity:
- 0% to 95% non-condensing
- Storage Temperature:
- -40 deg C to +85 deg C
- Environmental Rating:
- UL294 outdoor and indoor rated, IP65
- Transmit Frequency:
- 125 kHz, 13.56 MHz and 2.4 GHz
- Communications:
- Wiegand and RS-485 half duplex OSDP
- Device Management:
- HID Reader Manager / OSDP configuration
- Product Type:
- Readers
