HID-40KNKS-02 HID Signo 40K Wall Switch Keypad Reader - Smart Profile

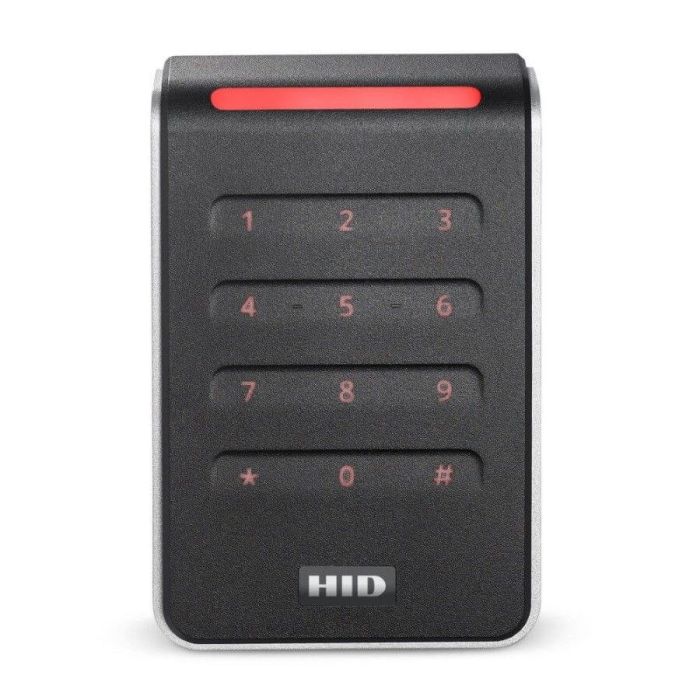

The HID-40KNKS-02 is a black HID Signo 40K wall-switch reader with a 3 x 4 capacitive keypad, silver trim baseplate, pigtail connection and Smart Profile. It supports Seos, iCLASS, supported MIFARE credentials and HID Mobile Access mobile IDs.
The reader is designed to mount over single-gang switch boxes and provides Bluetooth, NFC, Wiegand and OSDP communications together with IP65-rated environmental protection and HID Reader Manager support.
Key Features
- Wall switch reader format helps match the reader to the door, frame or wall position.
- Native Bluetooth and NFC support helps prepare sites for mobile credential use.
- OSDP support enables secure bidirectional reader communication where configured.
- IP65 outdoor and indoor rating supports exposed access-control locations.
- Reader Manager and OSDP configuration support easier setup and future updates.
- Catalogue Family:
- READERS
- Model:
- 40K
- Keypad:
- Yes - 3 x 4 capacitive keypad
- Mounting Style:
- Suited to cover single gang switch boxes with a slotted mounting plate
- Wiring Connection:
- Pigtail
- Credential Profile:
- Smart profile for Seos, iCLASS and MIFARE high-frequency smart credentials with mobile ID support
- Dimensions:
- 80 x 121.5 x 21.5 mm
- Weight:
- 160 g pigtail
- Colour:
- Black/Silver
- Operating Voltage:
- 12 V DC
- Operating Temperature:
- -35 deg C to +66 deg C
- Operating Humidity:
- 0% to 95% non-condensing
- Storage Temperature:
- -40 deg C to +85 deg C
- Environmental Rating:
- UL294 outdoor and indoor rated, IP65
- Transmit Frequency:
- 125 kHz, 13.56 MHz and 2.4 GHz
- Communications:
- Wiegand and RS-485 half duplex OSDP
- Device Management:
- HID Reader Manager / OSDP configuration
- Product Type:
- Readers
