HID-20NKS-01 HID Signo 20 Mullion Reader - Seos Profile

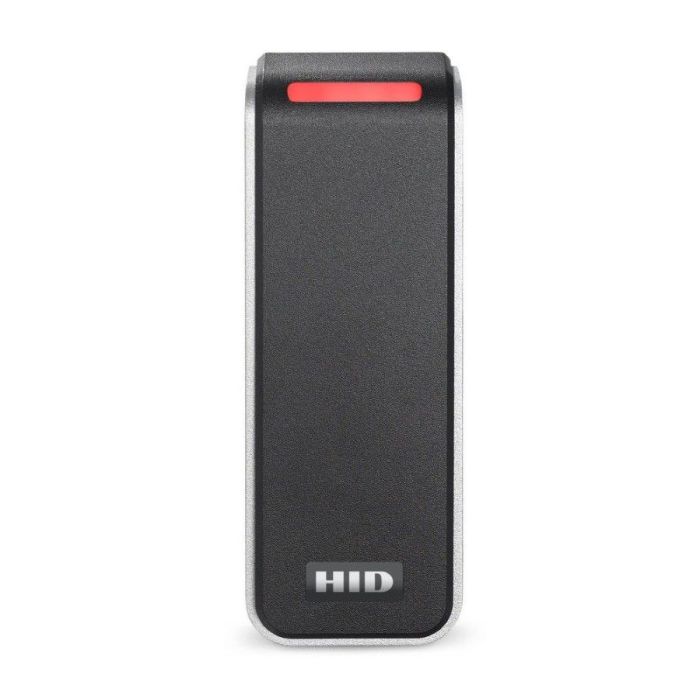

The HID-20NKS-01 is a black HID Signo 20 narrow reader with a silver trim baseplate, pigtail connection and Seos credential profile. It supports Seos credentials and HID Mobile Access Seos mobile IDs through NFC and Bluetooth.
The reader is suited to mullion-mount door installations or flat-surface mounting and provides Wiegand and RS-485 OSDP communication, IP65 environmental protection and configuration through HID Reader Manager or OSDP.
Key Features
- Mullion reader format helps match the reader to the door, frame or wall position.
- Native Bluetooth and NFC support helps prepare sites for mobile credential use.
- OSDP support enables secure bidirectional reader communication where configured.
- IP65 outdoor and indoor rating supports exposed access-control locations.
- Reader Manager and OSDP configuration support easier setup and future updates.
- Catalogue Family:
- READERS
- Model:
- 20
- Keypad:
- No
- Mounting Style:
- Suited for mullion-mount door installations or any flat surface mounting
- Wiring Connection:
- Pigtail
- Credential Profile:
- Seos profile for Seos and mobile ID credential use
- Dimensions:
- 45 x 121.5 x 19.5 mm
- Weight:
- 95 g pigtail
- Colour:
- Black/Silver
- Operating Voltage:
- 12 V DC
- Operating Temperature:
- -35 deg C to +66 deg C
- Operating Humidity:
- 0% to 95% non-condensing
- Storage Temperature:
- -40 deg C to +85 deg C
- Environmental Rating:
- UL294 outdoor and indoor rated, IP65
- Transmit Frequency:
- 125 kHz, 13.56 MHz and 2.4 GHz
- Communications:
- Wiegand and RS-485 half duplex OSDP
- Device Management:
- HID Reader Manager / OSDP configuration
- Product Type:
- Readers
