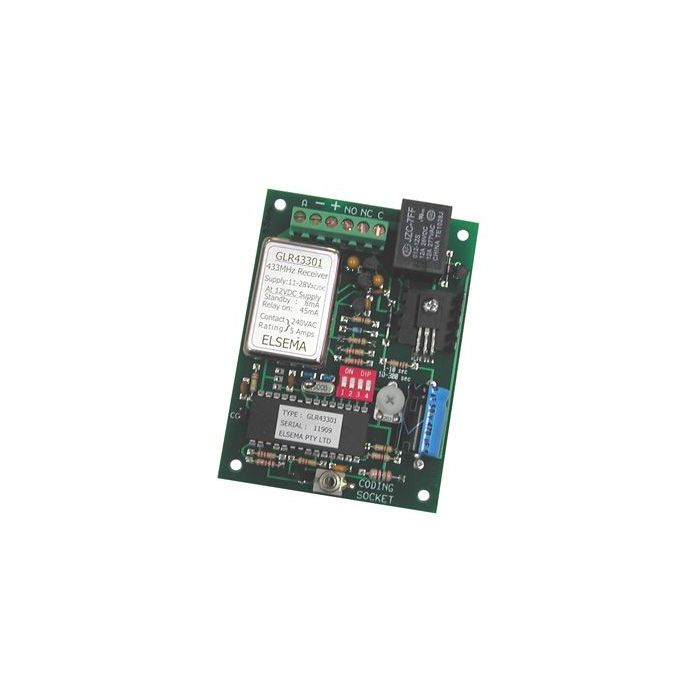

GLR43301 Single Channel 433 MHz Gigalink Receiver
The GLR43301 is a single-channel Elsema Gigalink receiver with timer-controlled relay output for 433 MHz remote-control applications. It accepts 10 to 28 V AC or 11 to 28 V DC supply, uses a microcontroller-based 96-bit code system, and provides one changeover relay output rated at 8 A at 240 V.
Suitable for automatic gates, security systems, timer-controlled outputs and simple on/off functions, the GLR43301 gives installers selectable momentary, latching, delayed-off, pulsing, on-off and security-latching behaviours. Its screw terminal connection and power-on LED support practical installation and commissioning.
Key Features
- Single relay output suits straightforward gate, security or timed switching applications.
- Wide AC/DC supply range helps the receiver fit common low-voltage control environments.
- User-selectable output modes let one receiver cover several common control behaviours.
- Microcontroller coding provides a large code space for Gigalink transmitter systems.
- Compact board dimensions support integration into suitable cases or control locations.
- Catalogue Family:
- POWER SUPPLY
- Supply Voltage:
- 11.0 to 28.0 V DC or 10.0 to 28.0 V AC
- Current Consumption:
- 16 mA standby at 12 V DC; 45 mA with relay on at 12 V DC
- Receiving Frequency:
- 433.920 MHz
- Operating Temperature:
- -5 to 50 deg C
- Sensitivity:
- Better than 1.0 uV for output switching
- Demodulation:
- Amplitude shift keying ASK
- Decoding System:
- Microcontroller based 96-bit word
- Code Combinations:
- 4,294,967,296
- Outputs:
- Changeover relay output rated at 8 A at 240 V
- Connections:
- 6-way screw type terminal block
- Dimensions:
- 96 x 70 x 20 mm
- Weight:
- 70 g
- Usable Transmitters:
- Elsema 433 MHz GLT series
