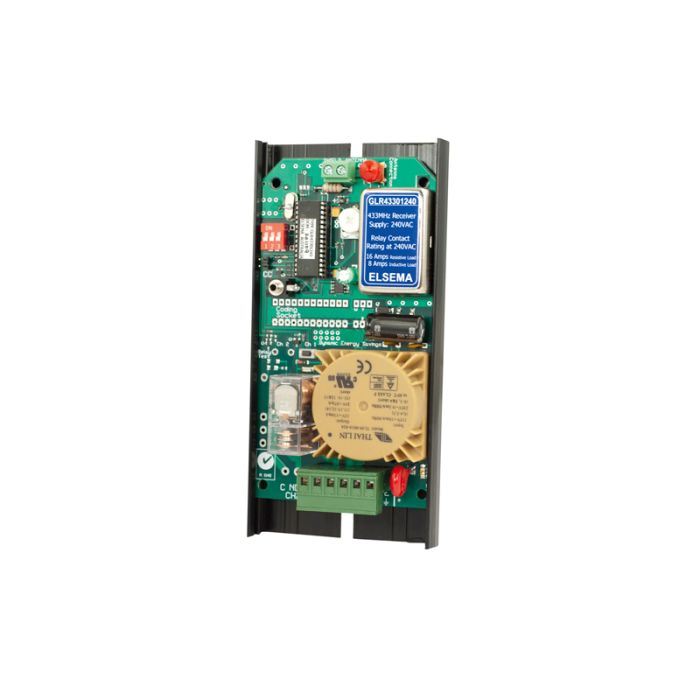

GLR43301240 Elsema Gigalink 433 MHz Receiver - 1 Channel 240 V AC
The GLR43301240 is a 1 channel 433 MHz Gigalink receiver with 240 V AC mains supply and a high-capacity relay output and a 433.920 MHz radio receiver with pluggable terminal blocks, selectable output modes, and compatibility with Elsema 433 MHz GLT Series transmitters.
Suitable for pump control, lighting, agricultural control, telemetry, and security alarm applications. Features a 16 A resistive relay output for higher-capacity switching within the specified load limits.
Key Features
- 240 V AC supply suits mains-powered receiver installations.
- 16 A resistive relay rating supports robust single-channel switching applications.
- Selectable output modes let installers choose momentary, latching or timed behaviour.
- Pluggable terminals make wiring and service access more practical.
- Compatible GLT433 transmitters keep the radio system within the Gigalink family.
- Catalogue Family:
- TRANSMITTERS & RECEIVERS
- Product Type:
- Transmitters & Receivers
- Supply Voltage:
- 240 V AC mains
- Current Consumption:
- 18 mA on 240 V AC
- Receiving Frequency:
- 433.920 MHz
- Operating Temperature:
- -5 to 50 degrees C
- Outputs:
- Changeover relay output, 16 A resistive or 8 A inductive load
- Dimensions:
- 130 x 70 x 37 mm
- Usable Transmitters:
- All Elsema 433 MHz GLT series
