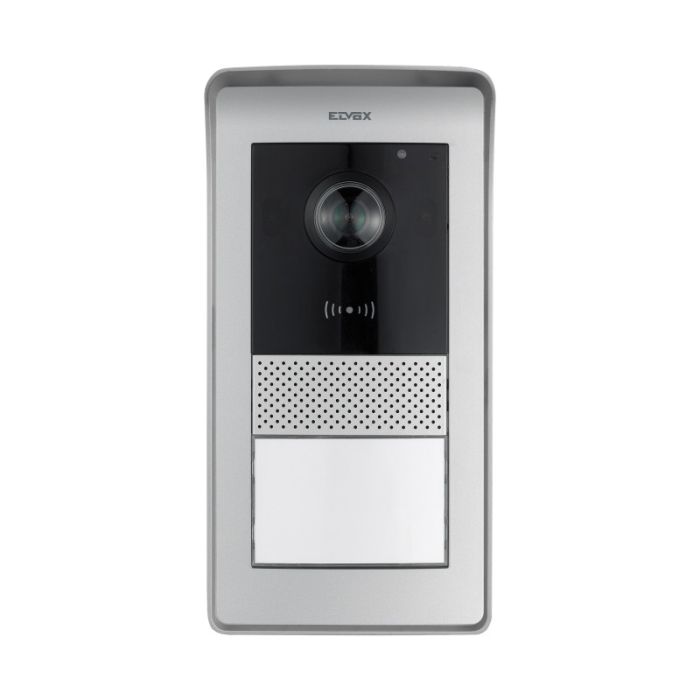

ELV40980-P IP-over-2-Wire Video Door Station - RFID Entrance Panel
The ELV40980-P is an IP-over-2-Wire outdoor entrance panel for the 7 in video kit system, combining a wide-angle audio/video door station with RFID access support. It uses a CMOS WDR video sensor with 2 Mpx resolution, H.264 Full HD video compression and a 160° horizontal wide-angle lens with IR-cut filter.
Designed for surface-wall mounting, the aluminium outdoor station supports backlit call buttons and name plates for one-, two- or four-apartment configurations. IP54 protection, IK07 impact rating, IR LEDs for night vision and anti-tamper function make it suitable for exposed entrance panel use within the supported IPo2W system.
Key Features
- Wide-angle imaging helps capture visitors clearly at the entrance point.
- RFID reader support adds practical access control to the door station role.
- Backlit buttons and name plates improve usability for small multi-dwelling layouts.
- Weather and impact ratings support installation in protected outdoor entry positions.
- Anti-tamper and status signalling help installers provide a more accountable entry solution.
- Catalogue Family:
- INTERCOM
- Product Type:
- Intercom
- Video Sensor:
- CMOS WDR, 2 Mpx
- Video Resolution:
- Full HD 1920 x 1080, H.264
- Lens:
- 160° horizontal wide angle with IR-cut filter
- Protection Rating:
- IP54
- Impact Rating:
- IK07
- Housing:
- Aluminium
- Mounting:
- Surface-wall mount
- Operating Temperature:
- -25 °C to +55 °C
- Operating Humidity:
- 0% to 90%
- Dimensions:
- 101.3 mm x 198.8 mm x 43.8 mm with rain-proof frame; 95.5 mm x 190 mm x 33 mm without rain-proof frame
