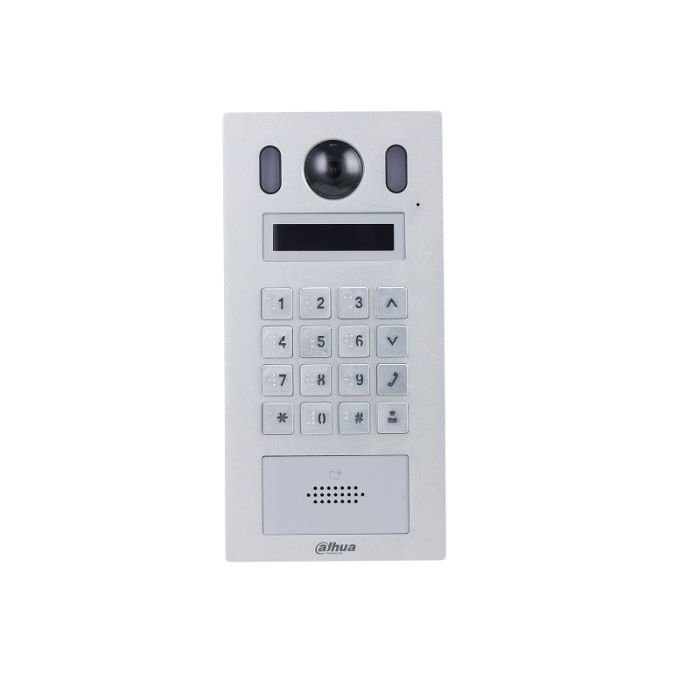

VTO6222E-P 2-wire IP Apartment Door Station
The VTO6222E-P is a 2-wire IP apartment door station with an aluminium panel, mechanical keypad and 2.3 inch OLED non-touchscreen display. It uses a 1/2.9 inch 2MP CMOS camera, supports card, password and remote unlock methods, and provides 12 VDC 600 mA power output.
It is designed for outdoor apartment entry points that need keypad access, intercom and card management. It supports 10000-card capacity, Wiegand, Micro SD storage up to 256 GB, PoE, IP65 protection with silicone sealant and IK08 impact protection.
Key Features
- Combines apartment door-station intercom with a mechanical keypad interface.
- Supports multiple access methods including card, password and remote unlocking.
- Provides integration paths through Wiegand and alarm/lock ports.
- Supports higher card-user requirements with 10000-card capacity.
- Suits outdoor apartment entries with IP65 and IK08 protection ratings.
- Catalogue Family:
- INTERCOM
- Display:
- 2.3 inch OLED non-touchscreen
- Camera:
- 1/2.9 inch 2MP CMOS
- Field of View:
- H: 140°; V: 80°; D: 160°
- Button Type:
- Mechanical; 16 buttons
- Unlock Mode:
- Card swiping; password; remote
- Storage:
- Micro SD card up to 256 GB
- Card Capacity:
- 10000
- Network Ports:
- 1 x RJ-45 10/100 Mbps
- Power Supply:
- 48 VDC 0.4 A; PoE 802.3af/at
- Protection:
- IK08; IP65
- Dimensions:
- 200.0 mm x 98.0 mm x 35.4 mm
- Product Type:
- Intercom
