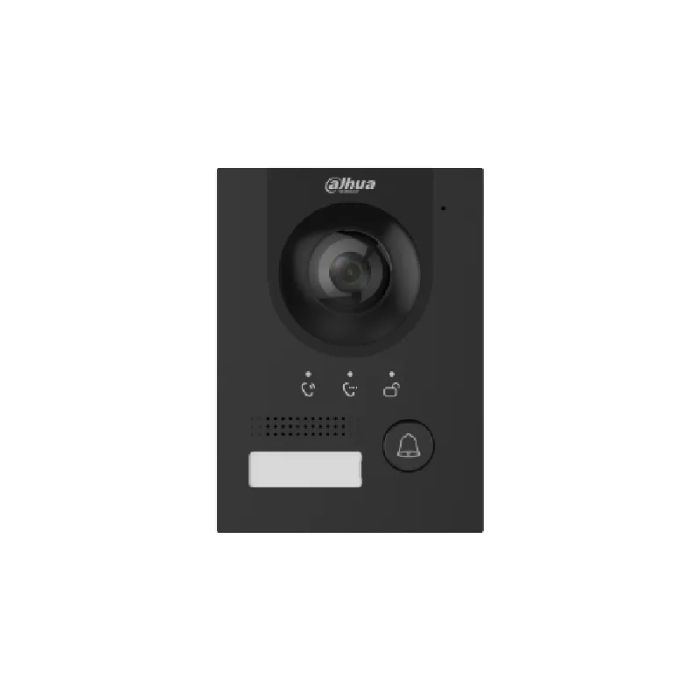

VTO2202FB-P-S3 2-wire IP Villa Door Station - Black
The VTO2202FB-P-S3 is a black 2-wire IP villa door station with an anodised aluminium front panel and a 1/2.9 inch 2MP CMOS low-illumination camera. It supports digital 2-wire communication, H.265/H.264 compression, two-way audio and remote unlocking.
This model is suited to surface-mounted outdoor installations with PoE support, 12 VDC power output and Micro SD storage support up to 256 GB. IP65 and IK07 protection, 120 dB WDR and a wide 168.6° horizontal field of view make it suitable for compact villa entry points.
Key Features
- Delivers a black surface-mounted door station for 2-wire IP villa systems.
- Captures wide doorway scenes with a 168.6° horizontal field of view.
- Supports practical visitor handling with video intercom and two-way audio.
- Provides remote unlocking support within the digital 2-wire function set.
- Fits outdoor entry locations with IP65 and IK07 protection ratings.
- Catalogue Family:
- INTERCOM
- Camera:
- 1/2.9 inch 2MP CMOS
- Field of View:
- H: 168.6°; V: 87.1°; D: 176.7°
- WDR:
- 120 dB
- Video Compression:
- H.265; H.264
- Storage:
- Micro SD card up to 256 GB
- Audio Mode:
- Two-way audio
- Network Ports:
- 1 x RJ-45 10/100 Mbps
- Power Supply:
- Dahua 2-wire switch; 48 VDC 1 A; PoE 802.3af/at
- Installation:
- Surface mount
- Protection:
- IK07; IP65
- Dimensions:
- 130 mm x 96 mm x 28.5 mm
- Product Type:
- Intercom
