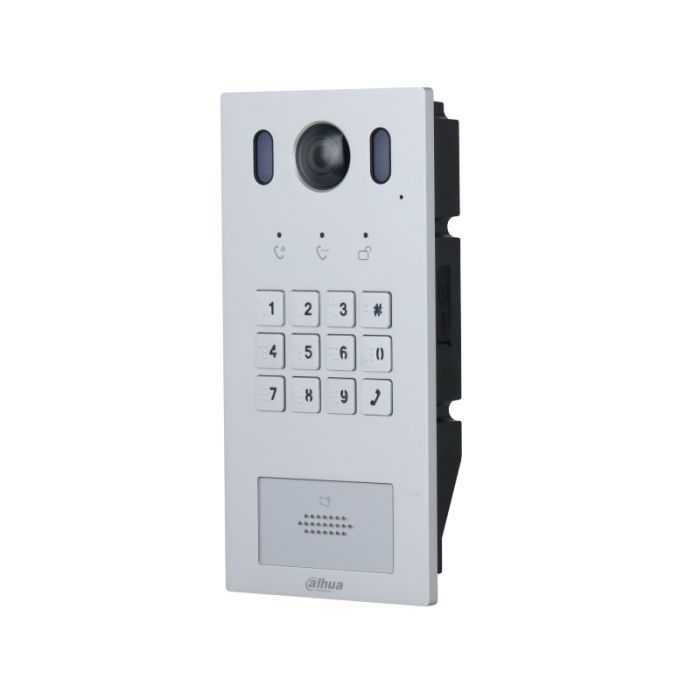

VTO3222E-P-2 2-wire IP Villa Door Station
The VTO3222E-P-2 is a 2-wire IP villa door station with a 1/2.9 inch 2MP CMOS camera and mechanical keypad. It supports card, password and remote unlocking, Wiegand connection and 12 VDC 600 mA power output.
It is designed for outdoor villa entry installations where keypad access, intercom and remote unlock functions are required. It supports 10000-card capacity, Micro SD storage up to 256 GB, PoE, IP65 protection with silicone sealant and IK08 impact protection.
Key Features
- Combines door-station intercom with keypad access for villa entry points.
- Supports multiple unlock paths including card, password and remote operation.
- Allows integration with card readers and controllers through Wiegand.
- Provides outdoor protection with IP65 and IK08 ratings.
- Supports larger access lists with 10000-card capacity.
- Catalogue Family:
- INTERCOM
- Camera:
- 1/2.9 inch 2MP CMOS
- Field of View:
- H: 140°; V: 80°; D: 160°
- Button Type:
- MECHANICAL; 12 BUTTONS
- Unlock Mode:
- Card swiping; password; remote
- Storage:
- Micro SD card up to 256 GB
- Card Capacity:
- 10000
- Network Ports:
- 1 X RJ-45 10/100 MBPS
- Power Supply:
- 48 VDC 0.4 A; POE 802.3AF/AT
- Installation:
- Flush mount; surface mount
- Protection:
- IK08; IP65
- Dimensions:
- 200.0 mm x 98.0 mm x 35.4 mm
- Product Type:
- INTERCOM
- Technology:
- 2-WIRE IP
- Modular / All In One:
- ALL IN ONE DOOR STATION
- Device Type:
- KEYPAD/AUDIO/VIDEO DOOR STATION
- Colour:
- SILVER
- Solution:
- RESIDENTIAL
- Display Size:
- NO DISPLAY
- Display/Button Type:
- MECHANICAL BUTTON
- Camera Resolution:
- 2MP
- Camera View Angle:
- 140°
- WDR:
- CAMERA WITH WDR
- Material:
- METAL
- Mounting:
- SURFACE/RECESSED MOUNT
- IP Rating:
- IP65
- IK Rating:
- IK08
- Teleloop (Hearing Aid Loop):
- WITHOUT TELELOOP
- IP System Compression:
- H.264 & H.265
- Output:
- LOCK & AUXILIARY OUTPUT
- Input:
- ALARM INPUT
- Additional Camera Input:
- NO ADDITIONAL CAMERA INPUT
- Features 1:
- WITH MIFARE READER
- Features 2:
- WITH WIEGAND OUTPUT
- Max SD Card Supported:
- UP TO 256GB MICRO SD CARD
- Mounting Box:
- REQUIRED MOUNTING BOX
- Power:
- 48VDC/POE(48V)/BY 2WIRE VTNS2003B-2
- LAN Port Entry:
- REAR ENTRY
