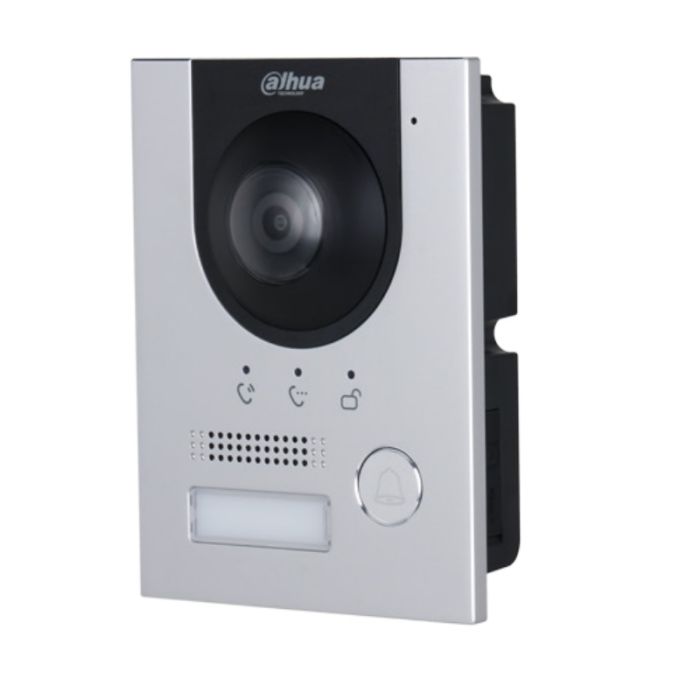

VTO2202F-P-S3 2-wire IP Villa Door Station - Silver
The VTO2202F-P-S3 is a silver 2-wire IP villa door station with an anodised aluminium front panel and a 1/2.9 inch 2MP CMOS low-illumination camera. It supports digital 2-wire communication, H.265/H.264 video compression, two-way audio and remote unlocking.
It suits outdoor villa intercom installations that need a compact door station with 168.6° horizontal field of view, 120 dB WDR and PoE support. Flush or surface mounting, IP65 and IK07 protection, 12 VDC power output and outdoor operating conditions are supported.
Key Features
- Provides a compact 2-wire IP door station for villa entry points.
- Covers wide entry views with a 168.6° horizontal camera field of view.
- Supports visitor communication through two-way audio and video intercom functions.
- Allows flexible installation with both flush and surface mounting.
- Suits outdoor sites with IP65 and IK07 protection ratings.
- Catalogue Family:
- INTERCOM
- Camera:
- 1/2.9 inch 2MP CMOS
- Field of View:
- H: 168.6°; V: 87.1°; D: 176.7°
- WDR:
- CAMERA WITH WDR
- Video Compression:
- H.265; H.264
- Audio Mode:
- Two-way audio
- Network Ports:
- 1 X RJ-45 10/100 MBPS
- Power Supply:
- DAHUA 2-WIRE SWITCH; 48 VDC 1 A; POE 802.3AF/AT
- Installation:
- Flush mount; surface mount
- Protection:
- IK07; IP65
- Dimensions:
- 130 mm x 96 mm x 28.5 mm
- Operating Temperature:
- -30 °C TO +60 °C
- Product Type:
- INTERCOM
- Series:
- SIP2.0
- Technology:
- IP/2-WIRE
- Device Type:
- 1 BUTTON AUDIO/VIDEO DOOR STATION
- Colour:
- SILVER
- Solution:
- RESIDENTIAL
- Display Size:
- NO DISPLAY
- Display/Button Type:
- MECHANICAL BUTTON
- Camera Resolution:
- 2MP
- Camera View Angle:
- 170°
- Material:
- METAL
- Mounting:
- SURFACE/RECESSED MOUNT
- IP Rating:
- IP65
- IK Rating:
- IK07
- Teleloop (Hearing Aid Loop):
- WITHOUT TELELOOP
- IP System Compression:
- H.264 & H.265
- Output:
- LOCK OUTPUT(DRY CONTACT)
- Input:
- REX & REED INPUT
- Additional Camera Input:
- NO ADDITIONAL CAMERA INPUT
- Features 1:
- SUB DOOR STATION
- Features 2:
- NO WIEGAND
- Max SD Card Supported:
- UP TO 256GB MICRO SD CARD
- Mounting Box:
- REQUIRED MOUNTING BOX
- Power:
- 48VDC/POE(48V)/BY 2WIRE VTNS2003B-2
