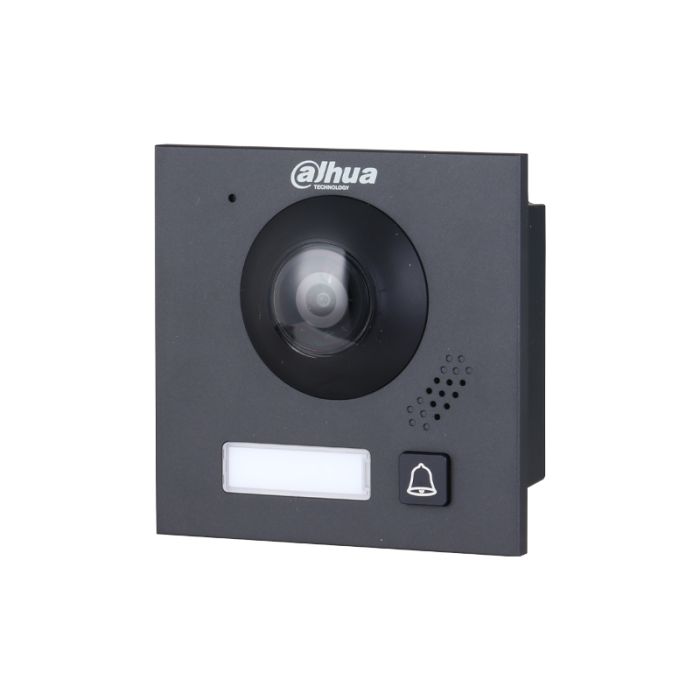

VTO4202FB-P1 2-wire IP Modular Apartment Door Station - Black
The VTO4202FB-P1 is a black 2-wire IP modular apartment door station camera module with an anodised aluminium front panel. It uses a 1/2.9 inch 2MP CMOS camera, 168.6° horizontal field of view, H.265/H.264 compression and digital 2-wire communication.
It supports video intercom, remote unlocking, two-way audio, Micro SD storage up to 256 GB and 12 VDC 600 mA power output. IP65 and IK07 protection, flush or surface mounting and PoE support make it suitable as the camera module for Dahua modular apartment and villa entry systems.
Key Features
- Provides the camera and intercom core for a black modular door station build.
- Captures wide entry views with a 168.6° horizontal field of view.
- Supports remote visitor handling with video intercom and remote unlock functions.
- Fits both flush and surface-mounted modular layouts.
- Supports outdoor entry use with IP65 and IK07 protection ratings.
- Catalogue Family:
- INTERCOM
- Camera:
- 1/2.9 inch 2MP CMOS
- Field of View:
- H: 168.6°; V: 87.1°; D: 176.7°
- WDR:
- 120 dB
- Video Compression:
- H.265; H.264
- Card Capacity:
- 3000
- Fingerprint Capacity:
- 3000
- Network Ports:
- 1 x RJ-45 10/100 Mbps
- Power Supply:
- Dahua 2-wire switch; 48 VDC 1 A; PoE 802.3af/at
- Installation:
- Flush mount; surface mount
- Protection:
- IK07; IP65
- Dimensions:
- 100.0 mm x 100.0 mm x 49.4 mm
- Product Type:
- Intercom
