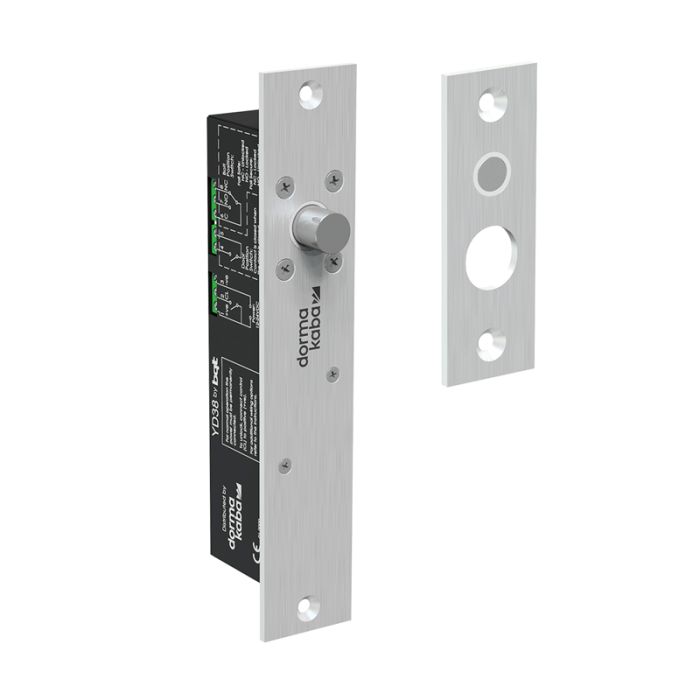

DB38PTL dormakaba DB38 Power To Lock Heavy Duty Electronic Deadbolt - 12-24 VDC
The DB38PTL is the power-to-lock variant of the dormakaba DB38 heavy duty electronic deadbolt lock. It uses a larger 14.2 mm stainless steel bolt pin and includes automatic deadbolting, anti-tailgate and anti-tamper features, dual monitoring and a 20,000 N holding force.
This heavy duty deadbolt is intended for single or double acting doors where higher physical strength is required. It supports 12 - 24 VDC operation, horizontal or vertical mortice mounting, accessory-assisted surface mounting and monitoring for both door and bolt position.
Key Features
- Heavy duty DB38 construction supports stronger locking requirements than the smaller DB25 platform
- Automatic deadbolting and auto-relock timing support controlled access operation
- Dual monitoring provides useful feedback for connected security systems
- Larger stainless steel bolt pin helps distinguish the DB38 heavy duty design
- Mortice or accessory-assisted surface mounting gives installation flexibility
- Catalogue Family:
- LOCKING
- Listed Item:
- DB38PTL D/BOLT 12-24VDC F/SAFE MNT'D
- Lock Dimensions:
- 203L x 37.5W x 44D mm
- Bolt Pin:
- 14.2 mm diameter stainless steel
- Holding Force:
- 20,000 N / 2,000 kg
- Voltage At Lock:
- 12 - 24 VDC +/- 10%
- Holding Current:
- 230 mA at 12 V; 90 mA at 24 V
- Operating Current:
- 1.5 A at 12 V; 1.4 A at 24 V
- Monitoring:
- Door and bolt position monitors
- Endurance:
- Cycle tested to 1,000,000 operations
- Product Type:
- Locking
